Installation connectors for explosion endangered zones
  • Installation connectors for explosion endangered zones
  • Installation connectors for explosion endangered zones

Photos are for informational purposes only. View product specification

please use latin characters

Manufacturer: Eaton / CEAG

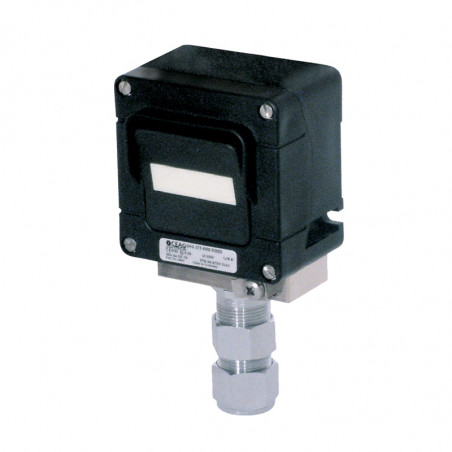

Installation connectors for explosion endangered zones

Technical data

Switch and button

Marking (94/9/EC):  II 2 G EEx de IIC T6 I  II 2 D T67 °C
Enclosure type: EEx de IIC T6 I Ex tD A21 IP66 T67 °C
Atest PTB 98 ATEX 3121
Enclosure polyamide
Protection class EN 60529 IP 66
Connection parameters: voltage rating : 250 V~ current rating 16 A
Cable glands: 1 x EEx e II M 25 x 1,5 dla kabli o średnicy 0 od 8 - 17 mm
Terminal connectors: operating terminals 2 x 2,5 mm2 PE terminals 4 x 2,5 mm2
Weight: 0,32 kg

Order information

Type Contacts Cable glands Order No.
2-way connection switch Łącznik instalacyjny - łącznik 2-bieg 1 x M25
2 x M25
2 x M20*		 GHG 273 2000 R0017
GHG 273 2000 R0018
GHG 273 2000 R0003
Switch (stair) Łącznik instalacyjny - przełącznik (schodowy) 1 x M25
2 x M20*
2 x M25		 GHG 273 6000 R0011
GHG 273 6000 R0003
GHG 273 6000 R0014
Ring button Łącznik instalacyjny - przycisk dzwonkowy 1 x M25
2 x M25		 GHG 273 4000 R0004
GHG 273 4000 R0007
* only threaded hole

Dimensions in mm

Łącznik instalacyjny
