Accessories for semiconductor relays
  • Accessories for semiconductor relays

Photos are for informational purposes only. View product specification

please use latin characters

Manufacturer: Crydom

Accessories for semiconductor relays

rysunek

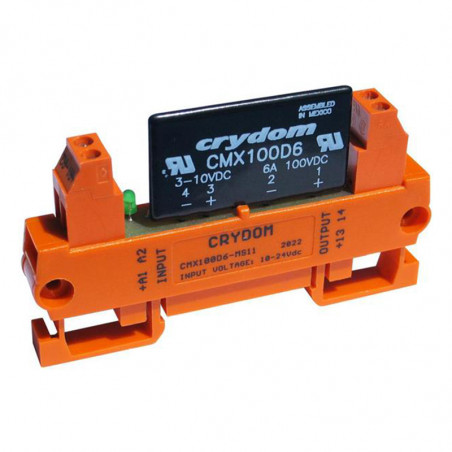

1. Single assembly for DIN bus. For relays: D2W203F, D2W203F-11, CX240D5(R), CXE240D5(R),CMX60D5, CMX60D10, CMX100D6.
2. Double assembly for DIN bus type MS12. For relays: see p.1.
3. Tripple assembly for DIN bus type MS13. For relays: see p.1.
4. Device for induction 3 phase motors rotation change - type MS14. For: CX480D5, CXE480D5.
5. Radiator MS1 DIN assembled  for relays with current 50 - 90 AAC and voltage 48 - 280 VAC, 80 - 660 VAC.
6. Radiator MS2 DIN  assembled for relays with current 10 - 50 AAC and voltage 48 - 280 VAC, 80 - 660 VAC.
7. Radiator MS3, MS3X  DIN assembled for3-phase relays with current 10 - 25 AAC and voltage 24 - 280 VAC.
8. Radiator MS4 DIN assembled for relays with current 10 - 25 AAC and  24 - 280 VAC.
9. Plastic casing for relays: one phase KS100, three phase (053...) KS300.
10. Protection diode 1,5KE400CA , UDDC=400V, PIMP=1,5kW



//
