PROBE 100:1 PHV 1000-O

Description:

The PHV 1000-O passive probe, produced by PMK, is optimized for use with the Bode 100. It is based on PMK’s high-voltage PHV series.

PHV 1000-O Applications:

  • Performing precise loop gain measurements for higher voltages
  • Protecting the input channels of the Bode 100

Main Features:

  • 5mm probe design
  • 50 MΩ || 7.5 pF input impedance
  • Replaceable gold-plated spring tip
  • 100:1 attenuation ratio
  • Maximum operating voltage of 2000V

Set Includes:

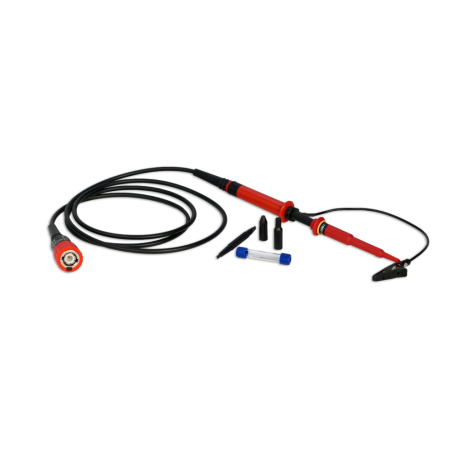

  • PHV 1000-O probe with spring tip and protective cap 5.0-L
  • Rigid probe tip (CuBe 0.8mm)
  • Grounding cable (22cm)
  • Spring hook 5.0-L
  • Insulating cap 5.0-L
  • T adjustment tool
  • Printed manual in English

Specifications

Parameter Value
Attenuation Ratio 100:1
Input Resistance (±1%) 50MΩ
Input Capacitance 7.5pF
Compensation Range 10…50pF
Measurement Device Input Coupling 1MΩ AC
Pollution Degree 2
Maximum Input Voltage 1000V Cat. II
Weight 67g
Cable Length 1.2m
Probe Tip Diameter 5mm
Altitude Operational up to 2000m
Non-operational up to 15000m
Temperature Range Operational 0…+50°C
Non-operational -40…+71°C
Maximum Operational Relative Humidity 80% relative humidity at temperatures up to +31°C, decreasing linearly to 40% at +50°C
Maximum Non-operational Relative Humidity 95% relative humidity at temperatures up to +40°C
Less
