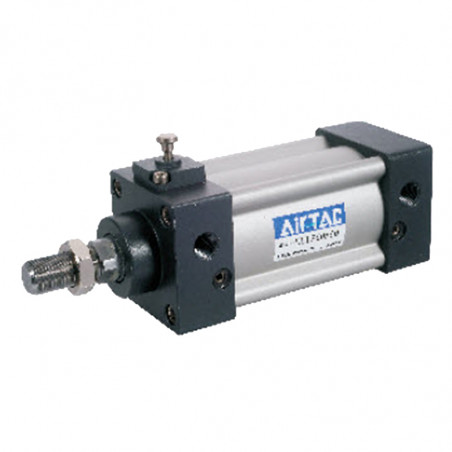

Cylinders with blocking (SIL, SUL, SCL).
  • Cylinders with blocking (SIL, SUL, SCL).

Photos are for informational purposes only. View product specification

please use latin characters

Manufacturer: AirTAC

Cylinders with blocking (SIL, SUL, SCL).

- Blockade is in the front or rear actuator side.
- Amortisation with pad.
- Available actuator full range.
- High temperature version ( up to 150°C)

Size mm 40 50 63 80 100 125 160 200
Operation Double
Medium Air
Type Basic FA  FB  CA  CB  LB  TC  TC-M1  TC-M2
Operation pressure 1.0~10.0bar (0.1~1.0MPa) (15~145psi)
Max pressure 15.0bar (1.5MPa) (215psi)
Temperature °C -20 do +80
Speed rangei mm/s 30~800 30~500
Amoritistaion type Variable
Step With/without lock.
Terminal SILB, SILF 1/4" 3/8" 1/2" 1/2" 3/4"
SULB, SULF / /
SCLB, SCLF / /

Less
Read more

Send an inquiry

Are you interested in this product? Do you need additional information or individual pricing?

Contact us
ASK FOR THE PRODUCT close
Thank you for sending your message. We will respond as soon as possible.
ASK FOR THE PRODUCT close
Browse
send an inquiry

Add to Wishlist

You must be logged in

- Blockade is in the front or rear actuator side.
- Amortisation with pad.
- Available actuator full range.
- High temperature version ( up to 150°C)

Size mm 40 50 63 80 100 125 160 200
Operation Double
Medium Air
Type Basic FA  FB  CA  CB  LB  TC  TC-M1  TC-M2
Operation pressure 1.0~10.0bar (0.1~1.0MPa) (15~145psi)
Max pressure 15.0bar (1.5MPa) (215psi)
Temperature °C -20 do +80
Speed rangei mm/s 30~800 30~500
Amoritistaion type Variable
Step With/without lock.
Terminal SILB, SILF 1/4" 3/8" 1/2" 1/2" 3/4"
SULB, SULF / /
SCLB, SCLF / /
