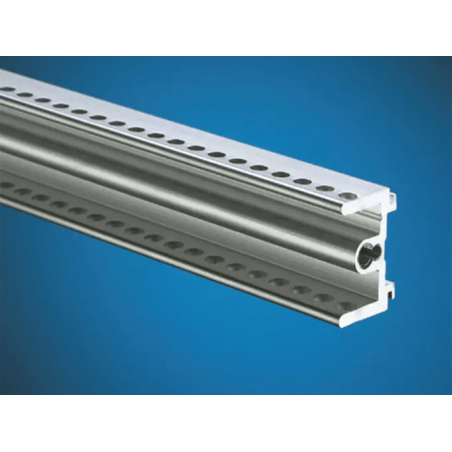

3686005 Rail Rear Adapter, Center (E) 63HP
  • 3686005 Rail Rear Adapter, Center (E) 63HP

Photos are for informational purposes only. View product specification

please use latin characters

Manufacturer: HEITEC AG

3686005 Rail Rear Adapter, Center (E) 63HP

  • 3686005
  • Colour RAL 5012
  • Version blady chromowany
  • Height (U) 9 U
  • Width (mm) 482,6 mm (19"
  • Side panel depth 540 mm
  • Top- / Bottom covers wentylowany
  • Packed after 1 Zestaw
When subdividing 6 U into 2 x 3 U, the adaptor rail accommodates the guide rails when fastened to the centre horizontal rail.
  • HP pitch pattern of holes for the precise installation of guide rails
  • M4 and M2.5 thread on the end face
  • Straight-through core hole
  • Horizontal rail 192 HP without machining onthe end faces. Suitable for cutting to length

Material:
Extruded aluminum section

Surface finish:
Clear-chromated or anodized

Send an inquiry

Are you interested in this product? Do you need additional information or individual pricing?

Contact us
ASK FOR THE PRODUCT close
Thank you for sending your message. We will respond as soon as possible.
ASK FOR THE PRODUCT close
Browse

Add to Wishlist

You must be logged in

  • Colour RAL 5012
  • Version blady chromowany
  • Height (U) 9 U
  • Width (mm) 482,6 mm (19"
  • Side panel depth 540 mm
  • Top- / Bottom covers wentylowany
  • Packed after 1 Zestaw
When subdividing 6 U into 2 x 3 U, the adaptor rail accommodates the guide rails when fastened to the centre horizontal rail.
  • HP pitch pattern of holes for the precise installation of guide rails
  • M4 and M2.5 thread on the end face
  • Straight-through core hole
  • Horizontal rail 192 HP without machining onthe end faces. Suitable for cutting to length

Material:
Extruded aluminum section

Surface finish:
Clear-chromated or anodized
