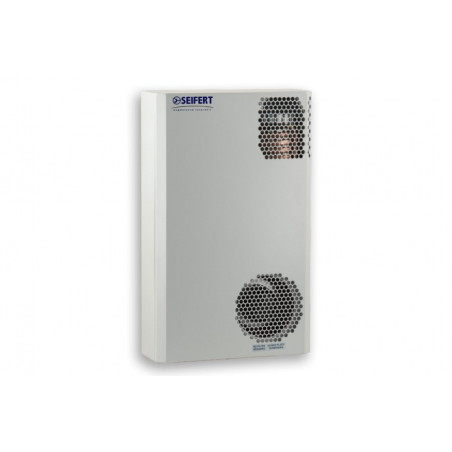

42681001. Shuttle air conditioner. Control cabinet - KG 4268-120V
  • 42681001. Shuttle air conditioner. Control cabinet - KG 4268-120V

Photos are for informational purposes only. View product specification

please use latin characters

Manufacturer: SEIFERT mtm SYSTEM

42681001. Shuttle air conditioner. Control cabinet - KG 4268-120V

  • 42681001
  • Dimensions 520 x 320 x 110 (25+85) mm
  • Working temp. range 10°C - +50°C
  • Voltage frequency 120 V ~ 60 Hz
  • Mounting methods Naścienny / Wpuszczany
  • Starting current 7.4 A
  • Max. Current 4.2 A
  • Max. Power 440 W
  • Refrigerant / GWP R134a / 1430
  • Cooling capacity of L35L35 425 W
  • Cooling capacity of L35L50 165 W
  • Compressor Sprężarka tłokowa rotacyjna
  • Refrigerant Charge 150 g / 5.3 oz
  • High / Low Pressure 27 / 15 bar 391 / 220 psig
  • Current L35L35 3.2 A
  • Nominal power L35L35 325 W
  • Air Flow Volume (System / Unimpeded) Obieg powietrza z otoczenia - 200 / 450 m³/h Obieg powietrza szafy - 125 / 250 m³/h
  • Weight 14.8 kg
Features
only 110 mm deep,ideal for smaller enclosures
protection class IP 54
completely filterless, virtually maintenance free
wall mounted or recessed
NEMA 4X covers for stainless steel models
Brand Name SoliTherm SlimLIne
Order Number 42681001
Colour RAL 7035
Housing Material Mild steel, powder coated
Ingress Protection IP 54
Approvals CE, cURus, cULus
