Manufacturer: HEITEC AG

9911891 AIR beacfles compact.

  • 9911891
  • Version Kompaktowy
    na 2 x zasilacze wtykowe z wtyczką Positronic 47 Pin
  • Height (U) 6 U / 6,5 U
  • Width (HP) 16 HP
  • Packed after 1 część
AMC slots must be populated with an empty card
in order to ensure adequate air resistance. The air
resistance should be adapted to the requirements
of the overall system by the user. In all
cases, it should be sufficiently high to ensure that
the air is forced to flow over active cards into
adjacent slots and does not flow unhindered

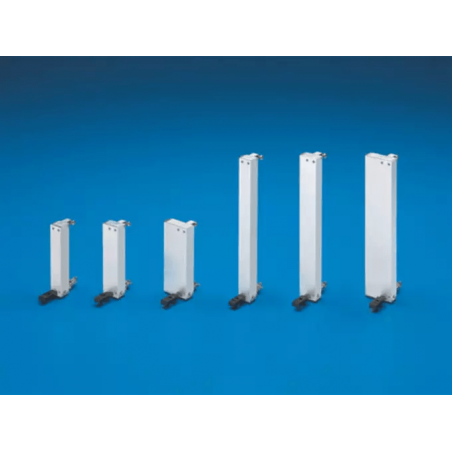

through empty slots. The air baffle plate is used to
adjust the air resistance. Up to 2 air baffle plates
may be mounted on one filler sheet. Adjustable air
resistance from 80 – 50 % thanks to removable
membranes.

Material:
Stainless steel

Supply includes:
  • 1 baffle plate
  • assembly parts
