Alucase - IP69K aluminum housing

aluCASE is a highly attractive and very versatile range of diecast aluminium enclosures for industrial electronics. The design is perfect for mounting to a wall or a machine, or for use as a mobile instrument. The enclosures are sealed to IP 67 for indoor and outdoor applications. Hot jet wash IP 69K is also available. The enclosures can be mounted without opening the lid which means your electronics remain protected at all times. Whatever the application, aluCASE provides the very best housing solution for your components. Designer features include a recessed lid, for fitting a membrane keypad, front plate or product label, clip-on design covers in plastic or aluminium that hide the lid screws and mounting holes, integrated hinges and lid retaining straps (on most models). Two versions are available with transparent lids. Threaded screw bosses are provided in the base and lid for PCBs, mounting plates, DIN rails etc. An optional key lock provides security access. Cable glands and other accessories are also available. We can supply aluCASE enclosures fully customised to your requirements.

Type Part No. Length Width Height Weight Mounting point
D		 Mounting point
E		 D Silikonowa uszczelka pokrywy D DA Zaślepki Alu DA DP Zaślepki POM DP EMC Ekranowanie EMV ID Zintegrowane uchwyty pokryw ID L Ochrona antykorozyjna L 69K Stopień ochrony IP 69K 69K S Zawiasy S ST Zamek z kluczykiem ST Dimensions
ACF 110 190.110.000 140 110 60 700 122 60 o o ⬤ o ⬤ o o o o Download
ACF 112 190.112.000 200 110 60 880 182 60 o o ⬤ o ⬤ o o o o Download
ACF 130 190.130.000 160 130 70 910 142 80 o o ⬤ o ⬤ o o o o Download
ACF 132 190.132.000 220 130 70 1130 202 80 o o ⬤ o ⬤ o o o o Download
ACF 150 190.150.000 180 150 60 968 162 100 o o ⬤ o ⬤ o o o o Download
ACF 152 190.152.000 260 150 60 1273 242 100 o o ⬤ o ⬤ o o o o Download
ACF 170 190.170.000 200 170 60 1096 182 120 o o ⬤ o ⬤ o o o o Download
ACF 172 190.172.000 280 170 60 1471 262 120 o o ⬤ o ⬤ o o o o Download
ACF 200 190.200.100 230 200 90 1720 212 144 o ⬤ - o ⬤ o o o o Download
AC 052 191.052.000 75 50 33 134 61 34 o - ⬤ o - o o - - Download
AC 054 191.054.000 100 50 33 166 86 34 o - ⬤ o - o o - - Download
AC 070 191.070.000 100 70 50 328 84 33 o - ⬤ o - o o - - Download
AC 072 191.072.000 140 70 50 411 124 33 o - ⬤ o - o o - - Download
AC 074 191.074.000 180 70 50 495 164 33 o - ⬤ o - o o - - Download
AC 090 191.090.000 120 90 60 580 102 40 o o ⬤ o ⬤ o o - - Download
AC 092 191.092.000 160 90 60 680 142 40 o o ⬤ o ⬤ o o - - Download
AC 094 191.094.000 250 90 60 861 232 40 o o ⬤ o ⬤ o o - - Download
AC 150 191.150.000 180 150 90 1216 162 100 o o ⬤ o ⬤ o o o o Download
AC 152 191.152.000 260 150 90 1569 242 100 o o ⬤ o ⬤ o o o o Download
AC 170 191.170.000 200 170 90 1430 182 120 o o ⬤ o ⬤ o o o o Download
AC 172 191.172.000 280 170 90 1789 262 120 o o ⬤ o ⬤ o o o o Download
AC 200 191.200.100 230 200 120 2005 212 144 o ⬤ - o ⬤ o o o o Download
AC 202 191.202.100 330 200 120 2328 312 144 o ⬤ - o ⬤ o o o o Download
AC 250 191.250.100 280 250 120 2643 262 194 o ⬤ - o ⬤ o - o o Download
AC 252 191.252.100 380 250 120 3295 362 194 o ⬤ - o ⬤ o - o o Download
AC 300 191.300.100 330 300 120 3353 312 244 o ⬤ - o ⬤ o - o o Download
AC 302 191.302.100 430 300 120 4092 412 244 o ⬤ - o ⬤ o - o o Download
AC 092K 192.092.000 160 90 60 680 142 40 o o ⬤ - ⬤ o o - - Download
ACF 110K 192.110.000 140 110 60 534 122 60 o o ⬤ - ⬤ o o - - Download
  • ⬤ standard
  • o available
  • - not available
A Mocowanie zewnętrzne A External mounting
B Uchwyt listwy zaciskowej B Block terminal support
BF Komora baterii BF Battery compartment
C Kolorowe paski nakładki zakrywające C Coloured design covers / caps
D Silikonowa uszczelka pokrywy D Silicone enclosure gasket
DA Zaślepki Alu DA Aluminium design covers
DH Przytrzymanie pokrywy DH Lid supports
DP Zaślepki POM DP POM design covers
DV Zamek z podwójną bródką DV Double-bit fastener
EMC Ekranowanie EMC Shielding
EP Polerowanie elektrolityczne EP Electro-polishing
F Płyta czołowa samoprzyczepna F Front plate self-adhesive
FE Wziernik FE Window
H Śruba ręczna H Hand screw
HG Uchwyt multiPANEL HG multiPANEL handle
HS Zawias przytrzymujący HS Hold hinges
I System uchwytów I Handle system
ID Zintegrowane uchwyty pokryw ID Integrated lid supports
IN Śruba imbusowa IN Captive Allen screw
IS Schowany zawias zewnętrzny IS Internal hinges
J Uchwyt ręczny J Handle
L Ochrona antykorozyjna L Corrosion proof coating
LH Uchwyt płytki drukowanej LH P.C.B. support for cards
M Płyty montażowe M Mounting plates
MH Zamocowanie masztowe MH Pole/Mast Support support
P Zestaw do plombowania P Sealing set
P 60 Pulpit, głębokość 60 mm P 60 Panel 60 mm deep
P 90 Pulpit, głębokość 90 mm P 90 Panel 90 mm deep
PR System uchwytów profilowych PR Profile handle system
Q Element nośny, poprzeczny Q Cross rail
RS Ścianka tylna z zawiasem RS Rear wall with hinge
S Zawiasy S Hinges
SF Stopki zatrzaskowe SF DIN rail mounting kit
SH Pokrywa ochronna SH Protective cover
ST Zamek z kluczykiem ST Insert lock
SV Złącza zatrzaskowe SV Quick-acting closure
SZ Złącze zatrzaskowe z zamkiem SZ Quick-acting closure with lock
T Szyny nośne pod zaciski szeregowe T Supporting rails for series terminals
TM Miejsce na klawiaturę myszkę TM Keyboard/mouse holder
V Śruba zamknięcie z rowkiem V Slotted head screw/closure
VR Skręcona śrubami ścianka tylna VR Bolted rear wall
W Śruba zamknięcie z gniazdem W Triangular screw/closure
WA Połączenie ścienne WA Wall connection
WM Kątowy zestaw montażowy WM Elbow assembly set
X Śruba zamknięcie z  X Collar-head screw/closure
Y Zamknięcie z przetyczką Y Lever fastener
Z Zamknięcie z przetyczką z zamkiem Z Lever fastener with lock
ZL Cal ZL Inch
67 Stopień ochrony IP 67 67 Ingress protection IP 67
69K Stopień ochrony IP 69K 69K Ingress protection IP 69K

Presentation of the aluCASE enclosure

Certifications
CSA (optional)
GOST
Germanischer Lloyd (optional)
UL (optional)
Enclosure sizes
29 sizes
Dimensions from: L x W x H
75 x 50 x 33 mm to 430 x 300 x 120 mm
Additional info
Can be fastened while enclosure is closed
Integrated recess in the lid for a membrane keypad, front plate or label
Integrated PP (polypropylene) lid support strap
2 sizes available with transparent lids
Clip-on design covers, standard: Plastic POM (polyoxymethylene), similar to RAL 7040 window grey
Optional: Anodised aluminium design covers
Optional: Exterior hinges made from anodised aluminium with no visible outer screws
Optional: Access safeguard by means of key lock
Enclosure
Diecast aluminium alloy
EN AN-44300 DIN EN 1706
(GD Al Si 12/DIN 1725)
1° mould slope for casting ejection > internal circumference dimensions decrease by 1° towards enclosure bottom.
Fastening
Separate screw channels
Internal mounting
M5 fastening thread on the enclosure base and in the lid
Ingress protection
IP 66, IP 67 / EN 60529
Optional: IP 69K / DIN 40050
Gasket
TPE moulded gasket, silicone-free, temperature resistance: -40°C to +120°C
Optional: Silicone gasket, temperature resistance: -50°C to +140°C
Lid screws
Stainless steel 1.4567, captive
Surface
Powder coating RAL 7040, window grey
Optional: Special colours
Optional: Corrosion protection
Customising
Learn more about our full customising service for installation-ready enclosures
Less
Read more

Send an inquiry

Are you interested in this product? Do you need additional information or individual pricing?

Contact us
ASK FOR THE PRODUCT close
Thank you for sending your message. We will respond as soon as possible.
ASK FOR THE PRODUCT close
Browse
send an inquiry

Add to Wishlist

You must be logged in

aluCASE is a highly attractive and very versatile range of diecast aluminium enclosures for industrial electronics. The design is perfect for mounting to a wall or a machine, or for use as a mobile instrument. The enclosures are sealed to IP 67 for indoor and outdoor applications. Hot jet wash IP 69K is also available. The enclosures can be mounted without opening the lid which means your electronics remain protected at all times. Whatever the application, aluCASE provides the very best housing solution for your components. Designer features include a recessed lid, for fitting a membrane keypad, front plate or product label, clip-on design covers in plastic or aluminium that hide the lid screws and mounting holes, integrated hinges and lid retaining straps (on most models). Two versions are available with transparent lids. Threaded screw bosses are provided in the base and lid for PCBs, mounting plates, DIN rails etc. An optional key lock provides security access. Cable glands and other accessories are also available. We can supply aluCASE enclosures fully customised to your requirements.

Type Part No. Length Width Height Weight Mounting point
D		 Mounting point
E		 D Silikonowa uszczelka pokrywy D DA Zaślepki Alu DA DP Zaślepki POM DP EMC Ekranowanie EMV ID Zintegrowane uchwyty pokryw ID L Ochrona antykorozyjna L 69K Stopień ochrony IP 69K 69K S Zawiasy S ST Zamek z kluczykiem ST Dimensions
ACF 110 190.110.000 140 110 60 700 122 60 o o ⬤ o ⬤ o o o o Download
ACF 112 190.112.000 200 110 60 880 182 60 o o ⬤ o ⬤ o o o o Download
ACF 130 190.130.000 160 130 70 910 142 80 o o ⬤ o ⬤ o o o o Download
ACF 132 190.132.000 220 130 70 1130 202 80 o o ⬤ o ⬤ o o o o Download
ACF 150 190.150.000 180 150 60 968 162 100 o o ⬤ o ⬤ o o o o Download
ACF 152 190.152.000 260 150 60 1273 242 100 o o ⬤ o ⬤ o o o o Download
ACF 170 190.170.000 200 170 60 1096 182 120 o o ⬤ o ⬤ o o o o Download
ACF 172 190.172.000 280 170 60 1471 262 120 o o ⬤ o ⬤ o o o o Download
ACF 200 190.200.100 230 200 90 1720 212 144 o ⬤ - o ⬤ o o o o Download
AC 052 191.052.000 75 50 33 134 61 34 o - ⬤ o - o o - - Download
AC 054 191.054.000 100 50 33 166 86 34 o - ⬤ o - o o - - Download
AC 070 191.070.000 100 70 50 328 84 33 o - ⬤ o - o o - - Download
AC 072 191.072.000 140 70 50 411 124 33 o - ⬤ o - o o - - Download
AC 074 191.074.000 180 70 50 495 164 33 o - ⬤ o - o o - - Download
AC 090 191.090.000 120 90 60 580 102 40 o o ⬤ o ⬤ o o - - Download
AC 092 191.092.000 160 90 60 680 142 40 o o ⬤ o ⬤ o o - - Download
AC 094 191.094.000 250 90 60 861 232 40 o o ⬤ o ⬤ o o - - Download
AC 150 191.150.000 180 150 90 1216 162 100 o o ⬤ o ⬤ o o o o Download
AC 152 191.152.000 260 150 90 1569 242 100 o o ⬤ o ⬤ o o o o Download
AC 170 191.170.000 200 170 90 1430 182 120 o o ⬤ o ⬤ o o o o Download
AC 172 191.172.000 280 170 90 1789 262 120 o o ⬤ o ⬤ o o o o Download
AC 200 191.200.100 230 200 120 2005 212 144 o ⬤ - o ⬤ o o o o Download
AC 202 191.202.100 330 200 120 2328 312 144 o ⬤ - o ⬤ o o o o Download
AC 250 191.250.100 280 250 120 2643 262 194 o ⬤ - o ⬤ o - o o Download
AC 252 191.252.100 380 250 120 3295 362 194 o ⬤ - o ⬤ o - o o Download
AC 300 191.300.100 330 300 120 3353 312 244 o ⬤ - o ⬤ o - o o Download
AC 302 191.302.100 430 300 120 4092 412 244 o ⬤ - o ⬤ o - o o Download
AC 092K 192.092.000 160 90 60 680 142 40 o o ⬤ - ⬤ o o - - Download
ACF 110K 192.110.000 140 110 60 534 122 60 o o ⬤ - ⬤ o o - - Download
  • ⬤ standard
  • o available
  • - not available
A Mocowanie zewnętrzne A External mounting
B Uchwyt listwy zaciskowej B Block terminal support
BF Komora baterii BF Battery compartment
C Kolorowe paski nakładki zakrywające C Coloured design covers / caps
D Silikonowa uszczelka pokrywy D Silicone enclosure gasket
DA Zaślepki Alu DA Aluminium design covers
DH Przytrzymanie pokrywy DH Lid supports
DP Zaślepki POM DP POM design covers
DV Zamek z podwójną bródką DV Double-bit fastener
EMC Ekranowanie EMC Shielding
EP Polerowanie elektrolityczne EP Electro-polishing
F Płyta czołowa samoprzyczepna F Front plate self-adhesive
FE Wziernik FE Window
H Śruba ręczna H Hand screw
HG Uchwyt multiPANEL HG multiPANEL handle
HS Zawias przytrzymujący HS Hold hinges
I System uchwytów I Handle system
ID Zintegrowane uchwyty pokryw ID Integrated lid supports
IN Śruba imbusowa IN Captive Allen screw
IS Schowany zawias zewnętrzny IS Internal hinges
J Uchwyt ręczny J Handle
L Ochrona antykorozyjna L Corrosion proof coating
LH Uchwyt płytki drukowanej LH P.C.B. support for cards
M Płyty montażowe M Mounting plates
MH Zamocowanie masztowe MH Pole/Mast Support support
P Zestaw do plombowania P Sealing set
P 60 Pulpit, głębokość 60 mm P 60 Panel 60 mm deep
P 90 Pulpit, głębokość 90 mm P 90 Panel 90 mm deep
PR System uchwytów profilowych PR Profile handle system
Q Element nośny, poprzeczny Q Cross rail
RS Ścianka tylna z zawiasem RS Rear wall with hinge
S Zawiasy S Hinges
SF Stopki zatrzaskowe SF DIN rail mounting kit
SH Pokrywa ochronna SH Protective cover
ST Zamek z kluczykiem ST Insert lock
SV Złącza zatrzaskowe SV Quick-acting closure
SZ Złącze zatrzaskowe z zamkiem SZ Quick-acting closure with lock
T Szyny nośne pod zaciski szeregowe T Supporting rails for series terminals
TM Miejsce na klawiaturę myszkę TM Keyboard/mouse holder
V Śruba zamknięcie z rowkiem V Slotted head screw/closure
VR Skręcona śrubami ścianka tylna VR Bolted rear wall
W Śruba zamknięcie z gniazdem W Triangular screw/closure
WA Połączenie ścienne WA Wall connection
WM Kątowy zestaw montażowy WM Elbow assembly set
X Śruba zamknięcie z  X Collar-head screw/closure
Y Zamknięcie z przetyczką Y Lever fastener
Z Zamknięcie z przetyczką z zamkiem Z Lever fastener with lock
ZL Cal ZL Inch
67 Stopień ochrony IP 67 67 Ingress protection IP 67
69K Stopień ochrony IP 69K 69K Ingress protection IP 69K

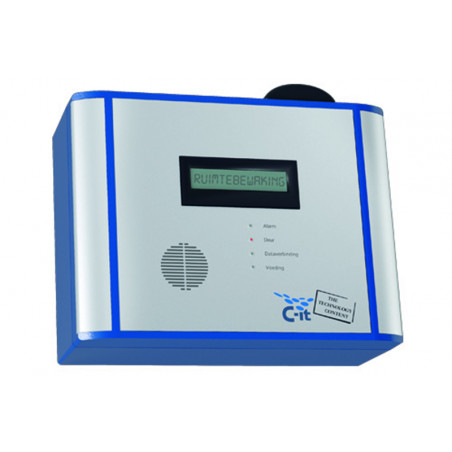

Presentation of the aluCASE enclosure

Certifications
CSA (optional)
GOST
Germanischer Lloyd (optional)
UL (optional)
Enclosure sizes
29 sizes
Dimensions from: L x W x H
75 x 50 x 33 mm to 430 x 300 x 120 mm
Additional info
Can be fastened while enclosure is closed
Integrated recess in the lid for a membrane keypad, front plate or label
Integrated PP (polypropylene) lid support strap
2 sizes available with transparent lids
Clip-on design covers, standard: Plastic POM (polyoxymethylene), similar to RAL 7040 window grey
Optional: Anodised aluminium design covers
Optional: Exterior hinges made from anodised aluminium with no visible outer screws
Optional: Access safeguard by means of key lock
Enclosure
Diecast aluminium alloy
EN AN-44300 DIN EN 1706
(GD Al Si 12/DIN 1725)
1° mould slope for casting ejection > internal circumference dimensions decrease by 1° towards enclosure bottom.
Fastening
Separate screw channels
Internal mounting
M5 fastening thread on the enclosure base and in the lid
Ingress protection
IP 66, IP 67 / EN 60529
Optional: IP 69K / DIN 40050
Gasket
TPE moulded gasket, silicone-free, temperature resistance: -40°C to +120°C
Optional: Silicone gasket, temperature resistance: -50°C to +140°C
Lid screws
Stainless steel 1.4567, captive
Surface
Powder coating RAL 7040, window grey
Optional: Special colours
Optional: Corrosion protection
Customising
Learn more about our full customising service for installation-ready enclosures
Less
Read more
Comments (0)
