Ammeters in sizes 72x72 and 96x96
  • Ammeters in sizes 72x72 and 96x96

Photos are for informational purposes only. View product specification

please use latin characters

Manufacturer: FRER

Ammeters in sizes 72x72 and 96x96

Ammeters in sizes 72x72 and 96x96

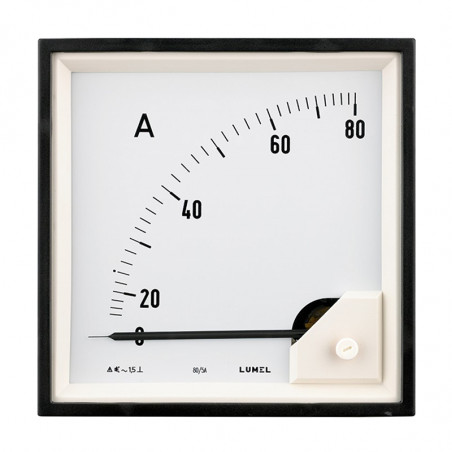

Panel electromagnetic meters with dimensions 72x72 and 96x96, are designed to measure RMS current. Meters designed for mounting in an array with a thickness not exceeding 15 mm DIN EN 60715, DIN EN 50 022. Meters for measurements in the range from 40 to 2000A using current transformers with the output of 5A


Available scales:
  • 0…..40A
  • 0…..60A
  • 0….100A
  • 0….150A
  • 0….250A
  • 0….400A
  • 0….600A
  • 0…1000A
  • 0…1500A
  • 0…2000A


Send an inquiry

Are you interested in this product? Do you need additional information or individual pricing?

Contact us
ASK FOR THE PRODUCT close
Thank you for sending your message. We will respond as soon as possible.
ASK FOR THE PRODUCT close
Browse

Add to Wishlist

You must be logged in

Ammeters in sizes 72x72 and 96x96

Panel electromagnetic meters with dimensions 72x72 and 96x96, are designed to measure RMS current. Meters designed for mounting in an array with a thickness not exceeding 15 mm DIN EN 60715, DIN EN 50 022. Meters for measurements in the range from 40 to 2000A using current transformers with the output of 5A


Available scales:
  • 0…..40A
  • 0…..60A
  • 0….100A
  • 0….150A
  • 0….250A
  • 0….400A
  • 0….600A
  • 0…1000A
  • 0…1500A
  • 0…2000A
