Manufacturer: HEITEC AG

3688121 ATX, 300 W power supply, PFC passive

  • 3688121
  • Power 300 watt
  • Version Zasilanie ATX, pasywne PFC
  • Width (HP) 12 HP
  • to PCB depth 160 mm
  • Top- / Bottom covers wentylowany
  • Packed after 1 część

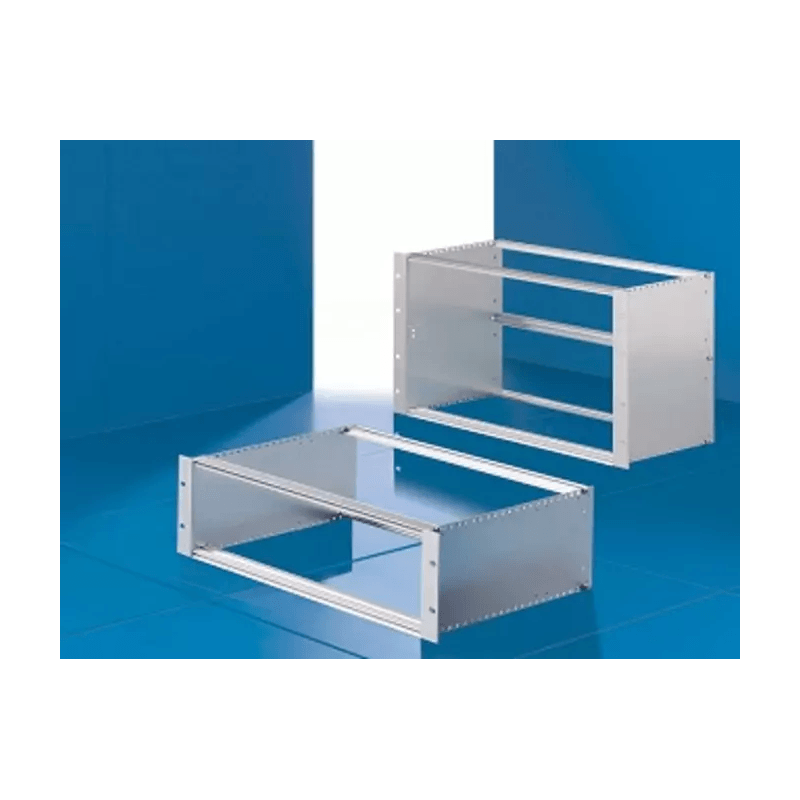

Thea modular principle of AT/ATX Vario Economy allows installationto accommodate individual requirements. The basic casemay be fitted for both AT and ATX applications with the appropriateselection of rear panels, power packs and front trim panels.For self-assembly, or on request fully assembled andwired. Technical specifications:
482.6 mm (19“) rack-mount system for the installation of ATX/
Mini-ATX. Micro-ATX or AT-/ Baby AT boards and 3 x 5¼“ and
1 x 3½“ drives.
  • Width: 482.6 mm (19“)
  • Height: 4 U (177.0/174.0 mm)
  • Total depth: 430 mm
Material/surface finish:
Case, cover:
1.2 mm sheet steel, zinc-plated, Front door: 1.2 mm sheet steel,
spray-finished in RAL 7035, unpainted contact points

Standards:
Complies with IEC 60 297-3 and
ATX specification 2.01

Special designs available
on request.

Basic enclosure supply
includes:
Case 4 U, 430 mm deep including assembly parts,
covers, drive holder, fan, horizontally hinged front
door, and air filter.

Note:
Rear panel, front trim panel and power pack should be ordered
separately (for self-assembly).
