Manufacturer: EXEPD

Earth terminal systems

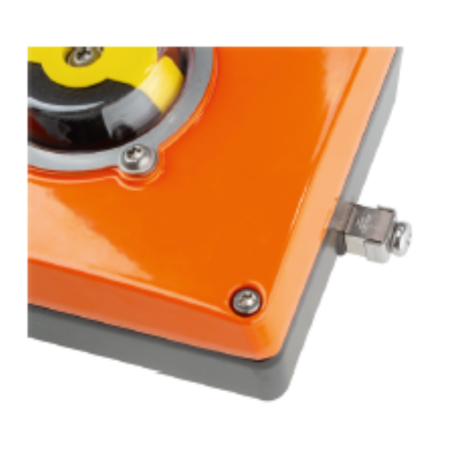

Electrical components with a metal body must have a connection point with a cross-section of at least 4 mm² according to standard 60079-0 to connect them to the ground potential. The grounding clamp from Exepd meets these requirements in accordance with EN 60079-0 for grounding and grounding conductors. The requirements for connectors specified in EN 60999-1 are also met. By pressing the clamp into a prepared blind hole, as shown in the figure below, the grounding clamps provide a long-lasting grounding and connecting connection for 1.5 ... 16 mm².

Ground distributor blocks are a combination of several grounding clamps and are used as a central grounding point in machines and systems operating in explosion hazard zones.

Technical Data
Ground connectors up to 4 mm²
MSK ESK MSK ESK
Art.-No.: 207018 214229
Material:
Base: Nickel-plated brass Stainless steel
Holder: Stainless steel Stainless steel
Screw: Stainless steel Stainless steel
Washer: Stainless steel Stainless steel
Connection: 4 mm² 4 mm²
6 mm² with cable lug		 4 mm²
6 mm² with cable lug





Ground connectors up to 16 mm²
MSG ESG
Art.-No.: 211352 215254
Material:
Base: Nickel-plated brass Stainless steel
Holder: Stainless steel Stainless steel
Screw: Stainless steel Stainless steel
Washer: Stainless steel Stainless steel
Connection: 16 mm² 16 mm²

Ground Distributor Block
EVK EVG
Art.-No.: 217122 217121
Material: Nickel-plated brass Nickel-plated brass
Dimensions: 65 x 40 x 32 mm 80 x 40 x 42 mm
Connection: Max. 10 x 4 mm² Max. 2 x 16 mm² + 10 x 4 mm²
Amb. Temperature: -50 °C ... +100 °C -50 °C ... +100 °C
