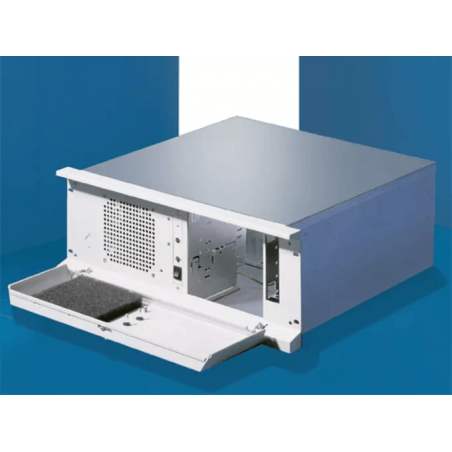

3659100 ATX economics with entrance doors, 4U, tin
  • 3659100 ATX economics with entrance doors, 4U, tin

Photos are for informational purposes only. View product specification

please use latin characters

Manufacturer: HEITEC AG

3659100 ATX economics with entrance doors, 4U, tin

  • 3659100
  • Version Głębokość całkowita 430 mm
  • Height (U) 4 U
  • With a hole for the handle tak
  • Packed after 1 część
Technical specifications:
  • 482.6 mm (19˝) rack-mount system for the installation of ATX/Mini-ATX or Micro-ATX boards and 3 x 5¼˝ and 1 x 3½˝ drives.
  • Width: 482.6 mm (19˝)
  • Height: 4 U (177.0 mm)
  • Total depth: 430 mm
  • EMC prepared.

Material/surface finish:
  • Case, cover
  • 1.2 mm sheet steel, zinc-plated,
  • Front door: 1.2 mm sheet steel,
  • spray-finished in RAL 7035,
  • unpainted contact points

Standards:
  • Complies with IEC 60 297-3
  • ATX specification 2.01
Special designs available on request.

Supply includes:
  • Rack-mount system 4 U, including drive holder
  • 1 x 120 mm fan and filter mat
  • ATX power pack 300 W
  • Front door, horizontally hinged, lockable
  • LED displays, speakers
  • Reset button
  • On/off switch
  • Cover
