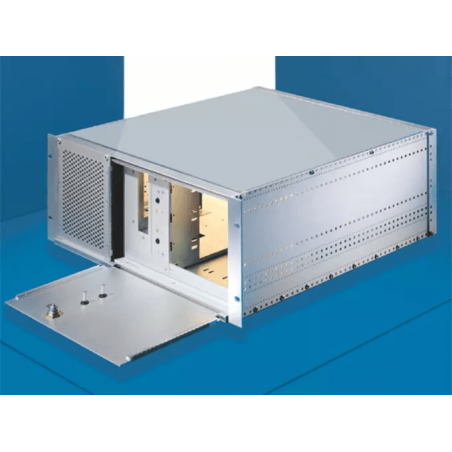

3659000 ATX Heipac 4U, Aluminum
  • 3659000 ATX Heipac 4U, Aluminum

Photos are for informational purposes only. View product specification

please use latin characters

Manufacturer: HEITEC AG

3659000 ATX Heipac 4U, Aluminum

  • 3659000
  • Height (U) 4 U
  • With a hole for the handle nie
  • Packed after 1 część
Technical specifications:
  • 482.6 mm (19˝) rack-mount system for the installation of ATX/Mini-ATX or Micro-ATX boards and 3 x 5¼˝ and 1 x 3½˝ drives.
  • Width: 482.6 mm (19˝)
  • Height: 4 U (177.0 mm)
  • Total depth: 440 mm
  • EMC prepared.
Material/surface finish:
  • Side panels, front panels: Aluminum, clear-chromated
  • Covers: 1.0 mm aluminum, clear-chromated
  • PC internal cassette: Sheet steel, zinc-plated
Standards:
  • Complies with IEC 60 297-3 and ATX specification 2.01
Special designs available on request.

Supply includes:
  • Rack-mount system 4 U, including drive holder
  • PC cassette
  • 1 fan 120 mm with filter
  • ATX power pack 300 W
  • Front door, horizontally hinged
  • Front door, horizontally hinged, lockable
  • LED displays
  • Reset button
  • EMC gaskets, all round
  • ON/OFF switch with electronics for automatic restart following a mains failure (activation/deactivation of the electronics via jumper)
  • Cover
