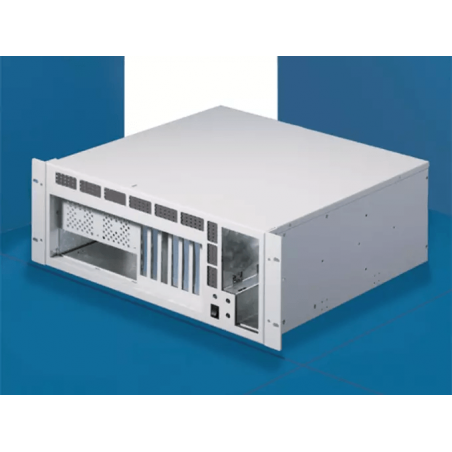

3659700 ATX with front connection to 19˝-installations, 4U
  • 3659700 ATX with front connection to 19˝-installations, 4U

Photos are for informational purposes only. View product specification

please use latin characters

Manufacturer: HEITEC AG

3659700 ATX with front connection to 19˝-installations, 4U

  • 3659700
  • Version 442,5 mm całkowita głębokość
    do wysokości obudowy 9U
  • Packed after 2 części
Technical specifications:
  • 482.6 mm (19˝ ) rack-mount system for the installation of ATX/Mini-ATX or Micro-ATX boards and 1 x 5¼˝ and 1 x 3½˝ drives.
  • Width: 482.6 mm (19˝ )
  • Height: 4 U
  • Flanges: 177.0 mm
  • Side panels: 174.0 mm
  • Total depth: 442.5 mm
  • Connections for I/Os, front EMC prepared. Suitable for mounting on slide rails.

Material/surface finish:
  • Case, covers
  • 1.2 mm sheet steel,
  • spray-finished in RAL 7035, unpainted contact points
Standards: Complies with IEC 60 297-3 and ATX specification 2.01 Special designs available on request.

Supply includes:
  • Rack-mount system 4 U, including drive holder
  • 19˝ flanges
  • 2 x 120 mm fans
  • ATX power pack 300 W
  • LED displays
  • Reset button
  • On/off switch
  • Cover
  • Rear panel with cutout and connection for power pack
  • Mounting bar for card retainer
  • Drive holder for 1 x 5¼˝ and 1 x 3½˝
  • Drive holder for 3 x 3½˝ hard drives
