Manufacturer: HEITEC AG

Obudowa ATX z przyłączem przednim do montażu na ścianie

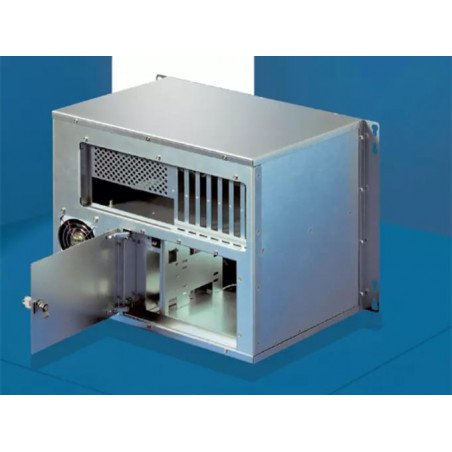

ATX with front connection for wall mounting


Technical characteristics ATX enclosures with front connection for wall mounting

  • The system designed for vertical assembly of ATX / MINI ATX or Micro ATX discs and 3 x 5 ¼ "and 1 x 3 ½" discs.
  • Height 330 mm
  • Total depth of 292.5 mm
  • I / O connectors, from the front
  • Adapted to extend to protect EMC.
  • Designed for mounting on mounting plates

Material / finish ATX housing surface with front connection for wall mounting

  • Cassette and covers: steel sheet 1.2 mm, galvanized, passivated, unpainted, non-colored contact points.

ATX housing standards with a front connection for wall mounting

  • Compliance with IEC 60 297-3 and ATX 2.01 specification

Product No. Height (mm) Width (mm) Version
3659710 330 mm 380 mm Total depth 292.5 mm
