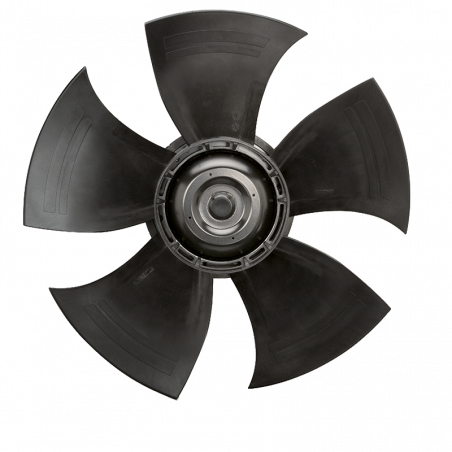

4414 LL axial fan
  • 4414 LL axial fan
  • 4414 LL axial fan
  • 4414 LL axial fan

Photos are for informational purposes only. View product specification

please use latin characters

Manufacturer: Ebmpapst

4414 LL axial fan

  • 4414 LL
  • Cable z wyprowadzeniami AWG 24, TR 64
  • Air flow direction Wydech nad rozpórkami
  • Dimensions 119 x 119 x 38 mm
  • Housing material Tworzywo PBT wzmocnione włóknem szklanym
  • Nominal voltage 24
  • Speed 2250
  • Power input 1.6
  • Min. ambient temperature -20
  • Max. ambient temperature 80
  • Air flow 124
  • Sound pressure level 33
  • Voltage range 12 .. 28
  • Bearing Łożysko kulkowe
  • Direction of rotation Zgodnie z ruchem wskazówek zegara, patrząc w kierunku wirnika
  • Rotor material Tworzywo PA wzmocnione włóknem szklanym
  • Lifetime L10 at 40 ° C 70000 h
  • L10 lifetime at maximum temperature 22500 h
  • Sound power level 4.5
  • Weight 0.270 kg
