Manufacturer: Ebmpapst

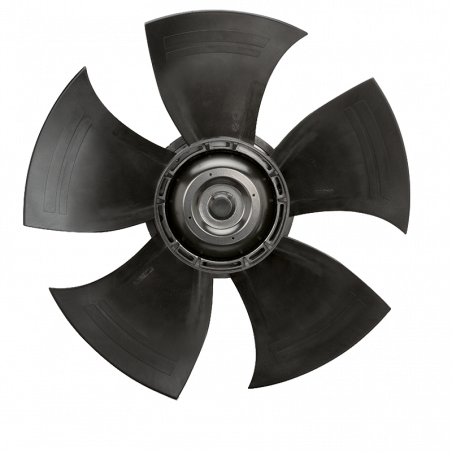

6318N / 2 TDH3P Axial fan

  • 6318N/2 TDH3P
  • Cable AWG 20, UL 1007, TR 64
  • Air flow direction Wydech nad rozpórkami
  • Dimensions Ø 172 x 51 mm
  • Housing material Odlewane ciśnieniowo aluminium
  • Nominal voltage 48
  • Speed 7500
  • Power input 160
  • Min. ambient temperature -20
  • Max. ambient temperature 70
  • Air flow 1030
  • Sound pressure level 76
  • Voltage range 36 .. 72
  • Bearing Łożysko kulkowe
  • Direction of rotation Przeciwnie do ruchu wskazówek zegara, patrząc w kierunku rotora
  • Rotor material Tworzywo PA wzmocnione włóknem szklanym
  • Lifetime L10 at 40 ° C 60.000 h
  • L10 lifetime at maximum temperature 30.000 h
  • Sound power level 8.4
  • Approval VDE, CSA, UL
  • Weight 0.85 kg
