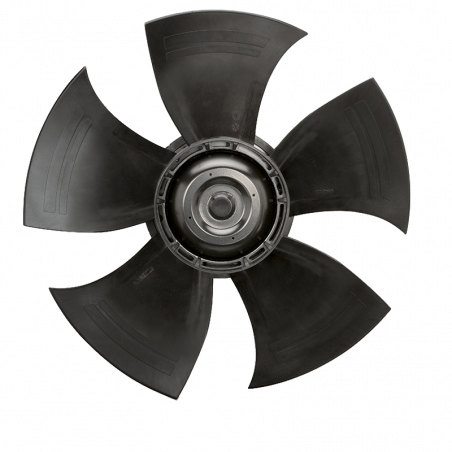

A3G500-BA74-N1 axial fan

Air flow direction A
Protection rating IP55
Phase 3~
Nominal voltage 400
Frequency 50/60
Speed 1600
Power input 1000
Current draw 1.6
Max. ambient temperature 60
Size 500 mm
Voltage range 380 .. 480
Direction of rotation Zgodnie z ruchem wskazówek zegara, patrząc w kierunku wirnika
Rotor material tworzywo PA, blacha malowana na czarno
Type of voltage AC
Approval EAC
Motor protection Zabezpieczenie przed przeciążeniem termicznym (TOP) podłączone wewnętrznie
Motor size 112
Insulation class F
Protection class against moisture (F) / environment (H) H3
Motor bearing Łożysko kulkowe / (uszczelnione)
Maximum back pressure 235
Rotor surface Malowany na czarno
Electronics housing material Odlew aluminiowy, malowany na czarno
Number of blades 5
Max. permitted ambient temp. (transport/storage) 80 °C
Min. ambient temp. (transport/storage) -40 °C
Installation position Wał poziomy lub wirnik na górze
Condensation drainage holes Nic
Mode S1
EMC regulations zgodnie z EN 50121-3-2
with cable Boczny
Protection class I (z podłączeniem przez klienta uziemienia ochronnego)
Compliance with standards EN 15085-1, CPC3
Weight 7.4 kg
