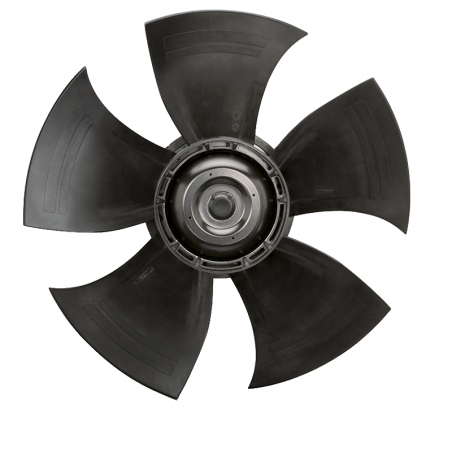

W3G300-Kn06-01 Axial fan

Air flow direction V
Protection rating IP54
Phase 1~
Nominal voltage 230
Frequency 50/60
Speed 2520
Power input 340
Current draw 1.5
Max. ambient temperature 60
Size 300 mm
Voltage range 200 .. 277
Direction of rotation Zgodnie z ruchem wskazówek zegara, patrząc w kierunku wirnika
Rotor material Tworzywo PP
Type of voltage AC
Approval UL 1004-7 + 60730-1 / EAC / CSA C22.2 No. 77 + CAN/CSA-E60730-1
Motor protection Elektroniczna ochrona silnika
Motor size 74
Insulation class B
Protection class against moisture (F) / environment (H) H1
Motor bearing Łożysko kulkowe
Maximum back pressure 325
Rotor surface Pasywowana grubowarstwowo
Number of blades 5
Max. permitted ambient temp. (transport/storage) 80 °C
Min. ambient temp. (transport/storage) - 40 °C
Installation position Wał poziomy lub wirnik na dole
Mode S1
with cable Zmienny
Protection class I (z podłączeniem przez klienta uziemienia ochronnego)
Electrical hookup Skrzynka zaciskowa
EMC immunity to interference Zgodnie z EN 61000-6-2 (środowisko przemysłowe)
EMC circuit feedback Zgodnie z EN 61000-3-2/3
EMC interference emission Zgodnie z EN 61000-6-4 (środowisko przemysłowe)
Terminal box material Tworzywo PP
Cooling hole/opening Po stronie wirnika
Fan housing material Tworzywo PP
Compliance with standards EN 60034-1
