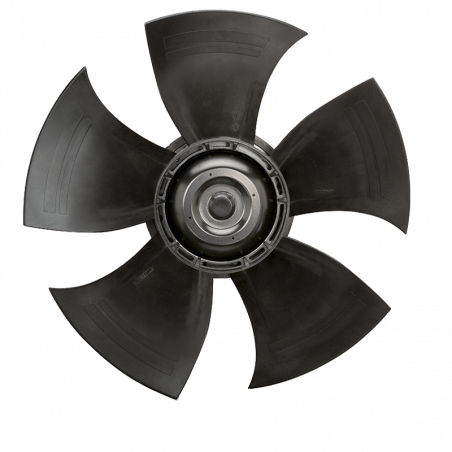

W3G350-WN01-30 Axial fan

Air flow direction V
Protection rating IP54
Phase 1~
Nominal voltage 230
Frequency 50/60
Speed 1475
Power input 165
Current draw 1.35
Min. ambient temperature -40
Max. ambient temperature 40
Size 350 mm
Voltage range 200 .. 240
Direction of rotation Przeciwnie do ruchu wskazówek zegara, patrząc w kierunku rotora
Type of voltage AC
Approval CCC
Motor protection Elektroniczna ochrona silnika
Motor size 74
Insulation class B
Protection class against moisture (F) / environment (H) H1
Motor bearing Łożysko kulkowe ze smarem niskotemperaturowym
Maximum back pressure 85
Rotor surface Pasywowana grubowarstwowo
Number of blades 5
Max. permitted ambient temp. (transport/storage) 70 °C
Min. ambient temp. (transport/storage) - 40 °C
Installation position Każdy
Condensation drainage holes Brak, otwarty wirnik
Mode S1
with cable Zmienny
Protection class I (z podłączeniem przez klienta uziemienia ochronnego)
Blade material Wciskany półfabrykat z blachy stalowej, spryskany plastikiem PP
Speed levels 2
Cooling hole/opening Po stronie wirnika
Fan housing material Tworzywo PP
Compliance with standards EN 60335-1 / CE
Weight 5.4 kg
