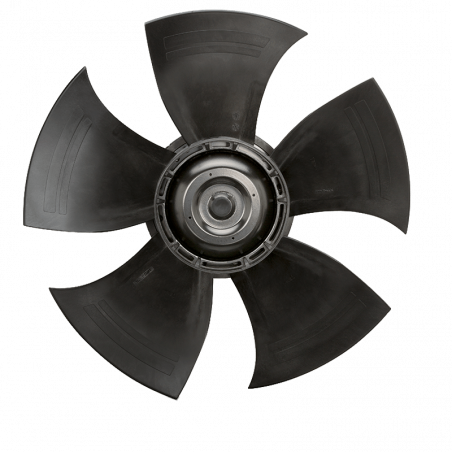

W3G450-SP02-42 Axial fan

Air flow direction V
Protection rating IP54
Phase 1~
Nominal voltage 230
Frequency 50/60
Speed 1100
Power input 163
Current draw 1.34
Min. ambient temperature -25
Max. ambient temperature 60
Size 450 mm
Voltage range 200 .. 240
Direction of rotation Przeciwnie do ruchu wskazówek zegara, patrząc w kierunku rotora
Type of voltage AC
Motor protection Elektroniczna ochrona silnika
Motor size 74
Insulation class B
Protection class against moisture (F) / environment (H) H2
Motor bearing Łożysko kulkowe wykonane ze stali nierdzewnej
Maximum back pressure 74
Rotor surface Malowany na czarno
Number of blades 5
Max. permitted ambient temp. (transport/storage) 80 °C
Min. ambient temp. (transport/storage) -40 °C
Installation position Shaft horizontal or rotor on bottom
Condensation drainage holes Po stronie wirnika
Mode S1
with cable Zmienny
Protection class I (z podłączeniem przez klienta uziemienia ochronnego)
Blade material Wciskany półfabrykat z blachy stalowej, spryskany plastikiem PP
Guard grille material Stal pokryta białym tworzywem sztucznym (RAL 9010)
Cooling hole/opening Po stronie wirnika
Fan housing material Plastik PP, biały
Compliance with standards EN 60335-1 / CE
Weight 10 kg
