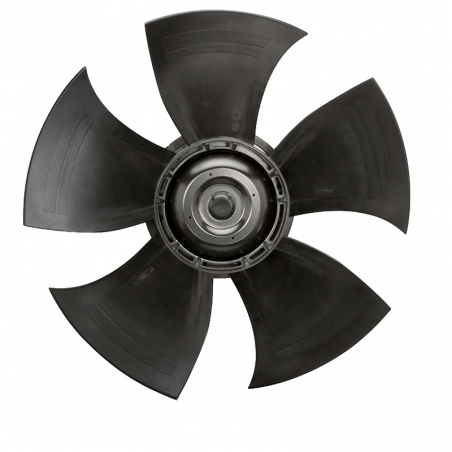

W4E300-SS72-30 axial fan

Air flow direction V
Protection rating IP44 / installation- and position-dependent as per EN 60034-5
Phase 1~
Nominal voltage 230
Frequency 50
Speed 1320
Power input 72
Current draw 0.32
Min. ambient temperature -40
Starting current 0.6
Motor capacitor 2
Size 300 mm
Direction of rotation Przeciwnie do ruchu wskazówek zegara, patrząc w kierunku rotora
Type of voltage AC
Approval CCC
Motor protection Zabezpieczenie przed przeciążeniem termicznym (TOP) podłączone wewnętrznie
Motor size 68
Insulation class B
Protection class against moisture (F) / environment (H) H1
Motor bearing Łożysko kulkowe ze smarem niskotemperaturowym
Maximum back pressure 40
Rotor surface Malowany na czarno
Number of blades 5
Max. permitted ambient temp. (transport/storage) 70 °C
Min. ambient temp. (transport/storage) - 40 °C
Installation position Wał poziomy lub wirnik na dole
Condensation drainage holes Po stronie wirnika
Mode S1
with cable Zmienny
Protection class I (z podłączeniem przez klienta uziemienia ochronnego)
Blade material Wciskany półfabrykat z blachy stalowej, spryskany plastikiem PP
Valid for approval / standard CE
Capacitor voltage 400
Capacitor standard S0
Fan housing material Tworzywo PP
Compliance with standards EN 60335-1 / CE
Weight 5 kg
