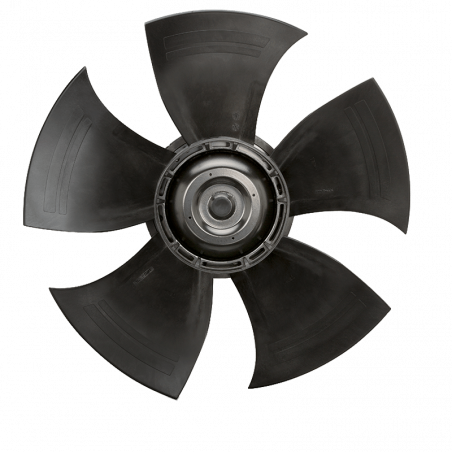

W4E400-Z02-01 Axial fan

Air flow direction V
Protection rating IP44 / installation- and position-dependent as per EN 60034-5
Phase 1~
Nominal voltage 230
Frequency 50
Speed 1330
Power input 225
Current draw 1
Starting current 2.1
Motor capacitor 5.5
Size 400 mm
Direction of rotation Zgodnie z ruchem wskazówek zegara, patrząc w kierunku wirnika
Rotor material Tworzywo PP, blacha ocynkowana
Type of voltage AC
Approval EAC
Motor protection Zabezpieczenie przed przeciążeniem termicznym (TOP) podłączone wewnętrznie
Motor size 74
Insulation class F
Protection class against moisture (F) / environment (H) H1
Motor bearing Łożysko kulkowe
Maximum back pressure 140
Rotor surface Malowany na czarno
Number of blades 5
Max. permitted ambient temp. (transport/storage) 80 °C
Min. ambient temp. (transport/storage) - 40 °C
Installation position Wał poziomy lub wirnik na dole
Condensation drainage holes Po stronie wirnika
Mode S1
with cable Zmienny
Protection class I (z podłączeniem przez klienta uziemienia ochronnego)
Electrical hookup Skrzynka zaciskowa / kondensator zintegrowany i podłączony
Terminal box material Tworzywo PP
Valid for approval / standard CE
Capacitor voltage 400
Capacitor standard S0
Fan housing material Tworzywo PP
Compliance with standards EN 60034-1
