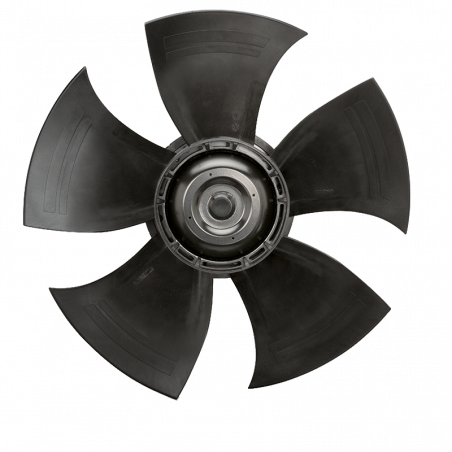

W4E450-JP01-30 Axial fan

Air flow direction V
Protection rating IP44 / installation- and position-dependent
Phase 1~
Nominal voltage 230
Frequency 50
Speed 1340
Power input 300
Current draw 1.32
Min. ambient temperature -40
Starting current 3
Motor capacitor 8
Size 450 mm
Direction of rotation Przeciwnie do ruchu wskazówek zegara, patrząc w kierunku rotora
Type of voltage AC
Approval CCC / EAC
Motor protection Zabezpieczenie przed przeciążeniem termicznym (TOP) podłączone wewnętrznie
Motor size 74
Insulation class F
Protection class against moisture (F) / environment (H) H1
Motor bearing Łożysko kulkowe ze smarem niskotemperaturowym
Maximum back pressure 70
Rotor surface Malowany na czarno
Number of blades 5
Max. permitted ambient temp. (transport/storage) 70 °C
Min. ambient temp. (transport/storage) - 40 °C
Installation position Każdy
Condensation drainage holes Nic
Mode S1
with cable Zmienny
Protection class I (z podłączeniem przez klienta uziemienia ochronnego)
Blade material Blacha stalowa malowana na czarno
Valid for approval / standard CE
Capacitor voltage 400
Capacitor standard S0
Guard grille material Stal pokryta czarnym tworzywem sztucznym (RAL 9005)
Fan housing material Tworzywo PP
Compliance with standards EN 60335-1 / CE
Weight 9.5 kg
