Manufacturer: OMICRON Lab

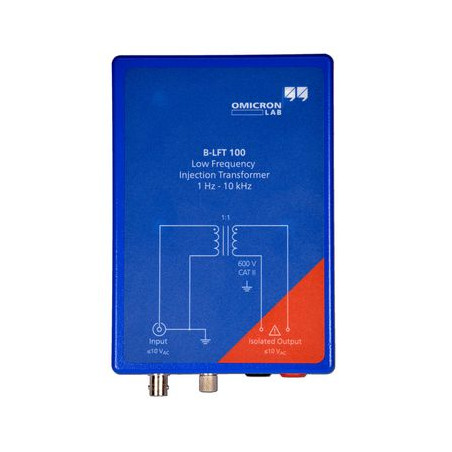

B-LFT 100 Low-Frequency Injection Transformer

  • B-LFT 100

B-LFT 100 Low-Frequency Injection Transformer

Description:

Sometimes higher power is required at lower frequencies. The B-LFT 100 is specifically designed to inject low-frequency signals into slow control loops, such as PFC controllers.

To ensure maximum signal-to-noise ratio for measurement, the B-LFT 100 can inject a 1Hz signal at the full output power of the Bode 100 (2VRMS) without saturation. For user safety, the B-LFT 100 features a safely isolated output on the secondary side with insulation up to 600V cat. II.

Main Features:

  • Optimization for low-frequency injection
  • Very low lower cutoff frequency -3dB: < 100mHz
  • Upper cutoff frequency -3dB: > 15kHz
  • Low insertion loss < 1dB (at 100Hz)
  • Safe isolation (600V cat. II)
  • 1:1 turns ratio

Technical Data:

Parameter Value
Useful Frequency Range 10mHz…100kHz
Insertion Loss < 1dB (at 100Hz)
Upper Cutoff Frequency -3dB > 15kHz (typically 20kHz)
Pri-Sec Isolation 600V cat. II
Pri-Sec Capacitance typically 600pF (at 1kHz)
Maximum Volt-Second 0.456Vs (typical)
DC Saturation Current 0.8mA (typical)
Maximum Total Current 0.1A (fuse)
Maximum AC Voltage 10 VRMS
Operating Temperature -20…+60°C
Relative Humidity 5…80%
Maximum Altitude 2000m
Dimensions 183x122x61mm
Weight 1.33kg
Input BNC
Output 4mm Banana Plugs
Grounding Terminal ✓
