B-Wic and B-SMC - Impedance adapters

B-WIC and B-SMC – Impedance Adapters

Description:

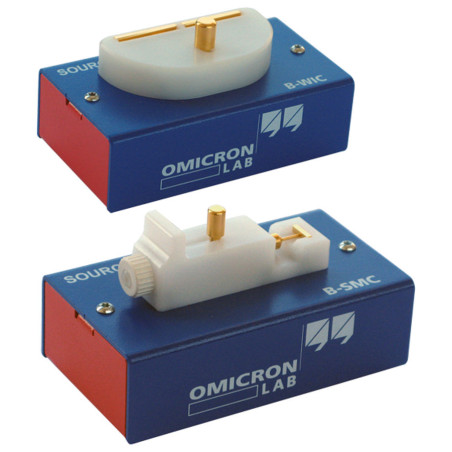

In combination with the Bode 100 vector network analyzer, the B-WIC and B-SMC impedance adapters serve as easy-to-use RLC meters or impedance analyzers and are the ideal choice for measuring the impedance of passive electronic components. The B-WIC is specifically designed for a better grip on THT-adapted components. The B-SMC, on the other hand, is capable of testing even the smallest SMD technology components.

Main Features:

  • Ideal for measuring the quality factor of RLC electronic circuits,
  • Quick change of the tested element,
  • Complies with CE and RoHS,
  • BNC input,
  • CH1 and CH2 output: BNC,
  • Connection to the test object via gold-plated flat electrodes and a spring-loaded mechanism that presses the contact and reduces contact impedance.
  • Useful frequency range 1Hz…50MHz
  • Recommended impedance range 20mΩ…600kΩ
Less
Read more
