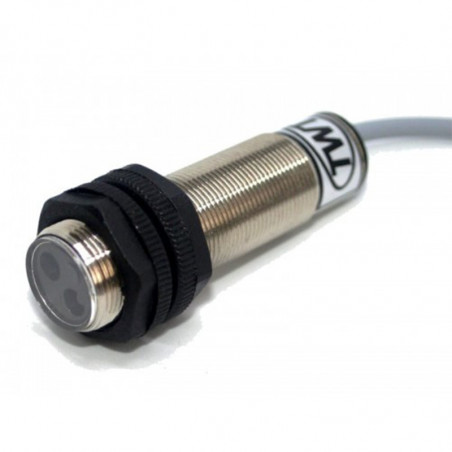

Barrier optic sensors - TOB series
  • Barrier optic sensors - TOB series

Photos are for informational purposes only. View product specification

please use latin characters

Manufacturer: TWT

Barrier optic sensors - TOB series

Type Sensor Metal casing Sensitivity range Range Sensitivity regulation Dimensions drawing nr
TOB12-1 NO Ml 2x1 Transceiver 1m 0-1m - 1
TOB12-1 NZ Ml 2x1 Transceiver 1m 0-1m - 1
TOB12-1ZP NO Ml 2x1 Receiver 1m 0-1m none 1
TOBI 2-1RP NZ Ml 2x1 Receiver 1m 0-1m none 1
TOB12-4 NO Ml 2x1 Transceiver 4m 0-4m - 2
TOB12-4 NZ Ml 2x1 Transceiver 4m 0-4m - 2
TOB12-4ZP NO Ml 2x1 Receiver 4m 0-4m none 2
TOB18-12 NZ M18x1 Receiver 4m 0-4m none 2
TOB18-12 NO Ml 8x1 Transceiver 8m 0-8m - 3
TOB18-8ZP NZ Ml 8x1 Transceiver 8m 0-8m - 3
TOBI 8-8RP NO Ml 8x1 Receiver 8m 0-8m Potentiometer 3
TOB18-12 NZ M18x1 Receiver 8m 0-8m Potentiometer 3
TOB18-12 NO Ml 8x1 Transceiver 12m 0-12m - 4
TOB18-12ZP NZ Ml 8x1 Transceiver 12m 0-12m - 4
TOB18-12ZP NO Ml 8x1 Receiver 12m 0-12m Potentiometer 4
TOB18-12RP NZ Ml 8x1 Receiver 12m 0-12m Potentiometer 4

Dimensions [mm]

Drawing 1
CZUJNIKI OPTYCZNE BARIERY SERII TOB Drawing 1
Drawing 2
CZUJNIKI OPTYCZNE BARIERY SERII TOB Drawing 2
Drawing 3
CZUJNIKI OPTYCZNE BARIERY SERII TOB Drawing 3
Drawing 4
CZUJNIKI OPTYCZNE BARIERY SERII TOB Drawing 4
