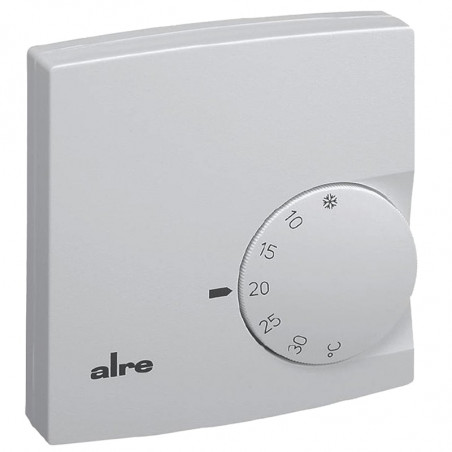

RTBSB-001.000 Bimmetall thermostat wall-mounted
  • RTBSB-001.000 Bimmetall thermostat wall-mounted

Photos are for informational purposes only. View product specification

please use latin characters

Manufacturer: ALRE

RTBSB-001.000 Bimmetall thermostat wall-mounted

  • RTBSB-001.000
  • Output signal przełączanie (230 VAC, 50 Hz)
  • Operating range 5 ... 30 °C
  • Hysteresis Około. 0,5 K przy zmianie temperatury max. 4 k./h
  • Working voltage 230 VAC, 50 Hz
  • Ambient temperature 0…30 °C
  • Protection class II, przy prawidłowym montażu
  • Max. switching current 10 (4) A
  • Max. switching voltage 230 VAC, 50 Hz
  • Switching voltage min 230 VAC, 50 Hz
  • Switching power 2300 W
  • Changeover contact rozwierny (maks. 10 siłowników)
  • Control function grzanie
  • Adjustment range 5…30 °C
Mechanical limitation of the scope; scale: degrees Celsius; external setting
Less
Read more
224.48 PLN
224.48 PLN Gross price / pcs.
182.50 PLN Net price / pc.
Tax included

Availability: Please be advised that this product is out of stock

You can place a pre-order, report your interest in the product by clicking the "Ask for availability" button.

Out of stock
ASK FOR THE PRODUCT close
Thank you for sending your message. We will respond as soon as possible.
ASK FOR THE PRODUCT close
Browse
send an inquiry

Add to Wishlist

You must be logged in

  • Output signal przełączanie (230 VAC, 50 Hz)
  • Operating range 5 ... 30 °C
  • Hysteresis Około. 0,5 K przy zmianie temperatury max. 4 k./h
  • Working voltage 230 VAC, 50 Hz
  • Ambient temperature 0…30 °C
  • Protection class II, przy prawidłowym montażu
  • Max. switching current 10 (4) A
  • Max. switching voltage 230 VAC, 50 Hz
  • Switching voltage min 230 VAC, 50 Hz
  • Switching power 2300 W
  • Changeover contact rozwierny (maks. 10 siłowników)
  • Control function grzanie
  • Adjustment range 5…30 °C
Mechanical limitation of the scope; scale: degrees Celsius; external setting
