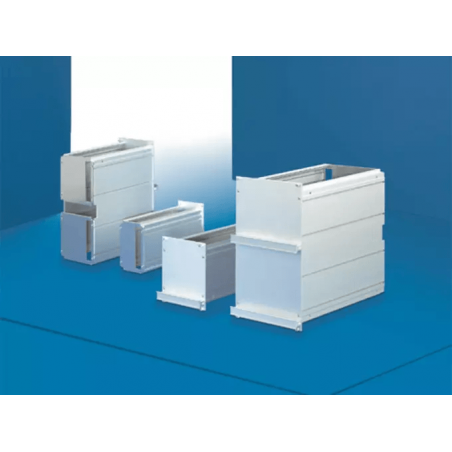

3653300 Type and 6U / 10HP box plug, PCB 220mm
  • 3653300 Type and 6U / 10HP box plug, PCB 220mm

Photos are for informational purposes only. View product specification

please use latin characters

Manufacturer: HEITEC AG

3653300 Type and 6U / 10HP box plug, PCB 220mm

  • 3653300
  • Height (U) 4 U
  • Width (mm) 482,6 mm (19"
  • Side panel depth 440 mm
  • Packed after 1 część
Technical specifications:
  • Installation depth: 160 and 220 mm
  • Height: 3 U and 6 U to IE C 60 297-3
  • Rear panel to accommodate single connectors

Material:
  • Front panel: 2.5 mm aluminum, pure anodized
  • Real panel: 2 mm aluminum, untreated
  • Side panel profile: extruded aluminum profile, pure anodized
  • Handle: aluminum, pure anodized
  • PCB holder: plastic

Available on request:
  • box type plug-in units in special sizes or printed
  • EMC box type plug-in units with EMC front panels
