C 500 t
  • C 500 t

Photos are for informational purposes only. View product specification

please use latin characters

Manufacturer: Celem

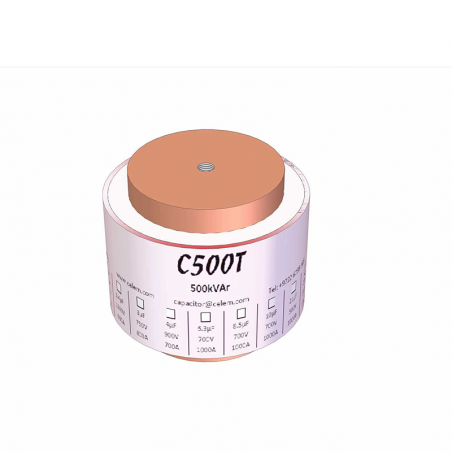

C 500 t

Electrical data

Type C 500T
Dimensions(LxWxH) [mm] Ø80x71,5 Ø88x71,5 Ø80x71,5
Weight kg 1/1 1,2 1,1
Capacity(±10%) [µF] 3 6,3 8,5 10 21
Sinusoidal Voltage [VRMS] 750   700   500
Impulse voltage [V] 1060   990   710
Max current [ARMS] 800   1000
Max power [kVAr] 500

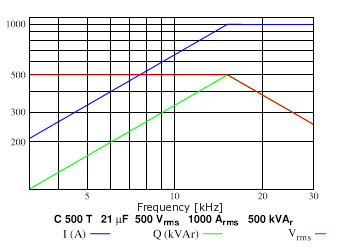

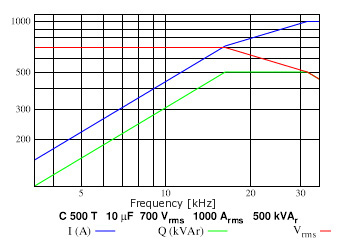

Frequency range @ Full power [kHz] 47-68 26-51 19-37 16-32 15-15
Dissipation Inductance nH < 10
Limit frequency kHz 70 60 40 35 30
Dimensions [mm]

Characteristics
