NMS300 Digital Readout Package
  • NMS300 Digital Readout Package

Photos are for informational purposes only. View product specification

please use latin characters

Manufacturer: Newall Measurement Systems Ltd

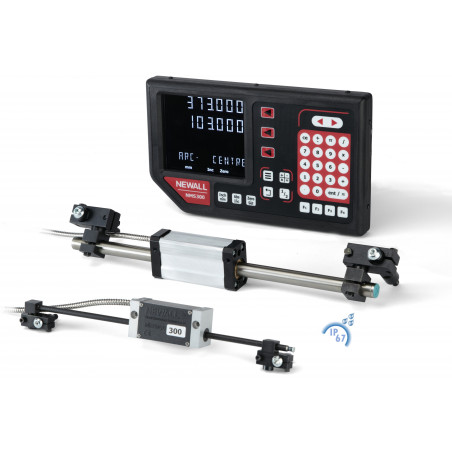

NMS300 Digital Readout Package

NMS300 Digital Readout Package

Newall’s NMS300 Digital Readout System sets the standard for reliability, value and ease of use. Specifically designed to be partnered with machine tool builders and importers, the NMS300 DRO System includes Newall’s Spherosyn300 and Microsyn300 encoders. Newall’s inductive encoders are simple to install and designed to provide consistent accuracy and reliability even under the harshest work shop conditions.

FEATURES INCLUDE:

  • Lathe and Mill specific functions
  • Panel mount option
  • Selectable resolutions down to 1 micron
  • Global technical support
  • User definable function keys
  • Custom mounting brackets available
  • Custom labelling, setup and display message available

The Newall Advantage

  • Backed by a company with nearly 50 years of proven quality in manufacturing DRO systems & linear encoders
  • Reliable and dependable inductive encoder technology
  • Encoders carry an IP67 rating – All electronic and measuring components are sealed from the environment
  • No glass to break or scratch
  • Continually provides accurate readings even under the harshest work shop conditions
  • No cleaning or maintenance required
  • Tolerant to shock and vibration
  • Easy to install—No backer bar or machined surface needed
Display FSTN LCD screen - 94m x 110mm— Membrane keypad with audible tactile feedback
Common Functions
  • 2 or 3 Axes configuration
  • Multiple language support
  • Four user definable function keys
  • Absolute / Incremental operation
  • Axis Pre-set / Zero reset
  • Inch/mm conversion
  • Linear and segmented error compensation
  • Digifind/Reference mark
  • Centre find
  • Programmable memory (200 per axis)
  • Built in calculator
  • Undo function
Milling Specific Functions
  • Bolthole Circle / PCD Calculations
  • Line Hole Calculations
  • Arc Contouring
  • Pocket Milling
Lathe Specific Functions
  • Radius/Diameter Readings
  • Tool Offset Library (50)
  • Taper Calculation
Construction High impact ABS front panel, powder coated steel rear housing
Dimensions Height: 160mm (6.3”), Width: 270mm (10.63”), Depth: 38.20mm (1.5”)
Electrical Requirements Voltage of 100-240 VAC (47 – 63 Hz) to external PSU included
Voltage Input to NMS300 display 15 – 24 VDC ± 10%

Encoder Mechanical Specs. Spherosyn300 Microsyn300
Scale Travels 52mm-3200mm 50mm-1000mm
Scale Diameter / Material 15.25mm / stainless steel 5.75mm / carbon fibre
Reader Head Dimension 99.45mm x 47mm x 30.5mm 75mm x 35mm x 25mm
Overall Scale Length Travel length + 258mm Travel length + 173mm
Standard Cable Length 3.5 metre and/or 7.0 metre with Armour and D Style Connector

Panel Mounting (Optional)

The NMS300 is available in a panel mount configuration. The unique mounting design was specially engineered to make for a clean, seamless look. The bracket design allows for a one-person installation when mounting the DRO to the panel.

Panel cutout dimension: 120mm x 210mm +/-2.5mm
