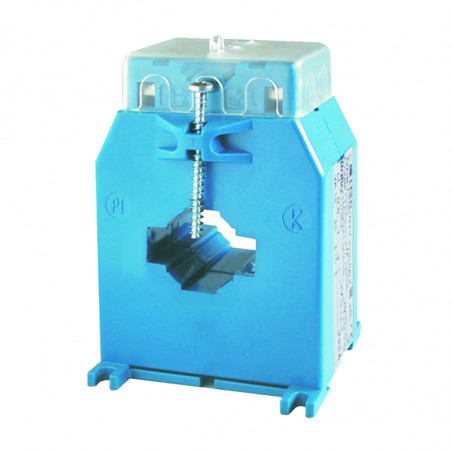

TAC033 current transformer for Ø24 cable / 30x10mm rail
  • TAC033 current transformer for Ø24 cable / 30x10mm rail

Photos are for informational purposes only. View product specification

please use latin characters

Manufacturer: FRER

TAC033 current transformer for Ø24 cable / 30x10mm rail

Technical Data

Thermoplastic material UL94-V0
Operating frequency 50-60Hz
Voltage 0.72kV
Test voltage 3kV * 1’50Hz
Insulation Klasa E
Protection degree IP 20
Continuous overcurrent 1.2In
Rated short-time thermal current (I th) 60 In
Rated dynamic current (I dyn) 2.5 x I th
Safety factor N<5
max. power dissipation (max range value) <5W
Operating temperature -25 +50o C
Storage temperature -40 +80o C
Manufactured according to

IEC/EN 60044-1,
VDE, BS, UTE
Integrated secondary terminals 6mm2


SECONDARY 5A

Ratio Burdens
[VA]		 Code
cl. 0.5 cl. 1
60/5 A 1 1.5

TAC033060X05
80/5 A 2 3

TAC033080X05
100/5 A 3 4

TAC033100X05
120/5 A 4 5

TAC033120X05
150/5 A 5 7.5

TAC033150X05
200/5 A 7.5 10

TAC033200X05
250/5 A 10 12

TAC033250X05
300/5 A 10 15

TAC033300X05
400/5 A 12 20

TAC033400X05
500/5 A 15 25

TAC033500X05
600/5 A 20 30

TAC033600X05

SECONDARY 1A

Ratio Burdens
[VA]		 Code
cl. 0.5 cl. 1
60/1 A 1 1.5

TAC033060X01
80/1 A 2 3

TAC033080X01
100/1 A 3 4

TAC033100X01
120/1 A 4 5

TAC033120X01
150/1 A 5 7.5

TAC033150X01
200/1 A 7.5 10

TAC033200X01
250/1 A 10 12

TAC033250X01
300/1 A 10 15

TAC033300X01
400/1 A 12 20

TAC033400X01
500/1 A 15 25

TAC033500X01
600/1 A 20 30

TAC033600X01


Dimensions

Przekładnik prądowy TAC033 na kabel Ø24/ szynę 30x10mm wymiar
