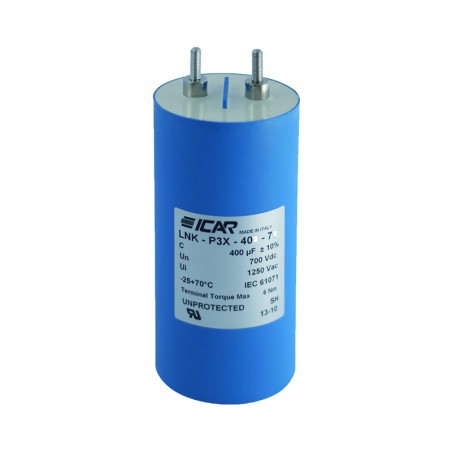

DC power capacitors LNK-P3X series
  • DC power capacitors LNK-P3X series

Photos are for informational purposes only. View product specification

please use latin characters

Manufacturer: Icar

DC power capacitors LNK-P3X series

Technical data
Operating temperature range: -25oC ÷70oC
Tolerance: ±10%

Routine dielectric test: DC voltage test between terminals= 1.5*UNDC,10s [DC]
voltage test between terminals and cas = 4000VAC, 60s [AC]
Type UN
[VDC]		 Capacitance
[µF]		 Us
[V]		 Imax
A		 dv/dt
V/us		 L
[nH]		 Rs
[mΩ]		 d
[mm]		 D
[mm]		 L
[mm]

LNK-P3X-200-70

 700 200 1400 30 20 80 3.9 M6 60 140

LNK-P3X-400-70

 700 400 1400 40 20 90 2.7 M6 75 155

LNK-P3X-750-70

 700 750 1400 55 20 90 1.6 M8 100 155

LNK-P3X-140-90

 900 140 1800 30 20 80 4.0 M6 60 140

LNK-P3X-250-90

 900 250 1800 40 20 90 2.3 M6 75 155

LNK-P3X-500-90

 900 500 1800 55 20 90 1.9 M8 100 155

LNK-P3X-120-100

 1000 120 2000 30 20 80 4.2 M6 60 140

LNK-P3X-200-100

 1000 200 2000 40 20 90 3.3 M6 75 155

LNK-P3X-400-100

 1000 400 2000 55 20 90 2.0 M8 100 155

LNK-P3X-100-110

 1100 100 2200 30 20 80 4.7 M6 60 140

LNK-P3X-190-110

 1100 190 2200 40 20 90 3.3 M6 75 155

LNK-P3X-350-110

 1100 350 2200 55 20 90 2.2 M8 100 155

LNK-P3X-75-125

 1250 75 2500 30 30 80 5.4 M6 60 140

LNK-P3X-140-125

 1250 140 2500 40 20 90 3.8 M6 75 155

LNK-P3X-250-125

 1250 250 2500 55 20 90 2.5 M8 100 155

LNK-P3X-50-145

 1450 50 2900 30 30 80 7.0 M6 60 140

LNK-P3X-100-145

 1450 100 2900 40 30 90 4.6 M6 75 155

LNK-P3X-200-145

 1450 200 2900 55 30 90 2.7 M8 100 155

LNK-P3X-33-180

 1800 33 3600 30 40 80 8.5 M6 60 140

LNK-P3X-66-180

 1800 66 3600 40 30 90 5.6 M6 75 155

LNK-P3X-125-180

 1800 125 3600 55 30 90 3.3 M8 100 155

Dimensions [mm]

Kondesatory mocy DC seria LNK-P3X
