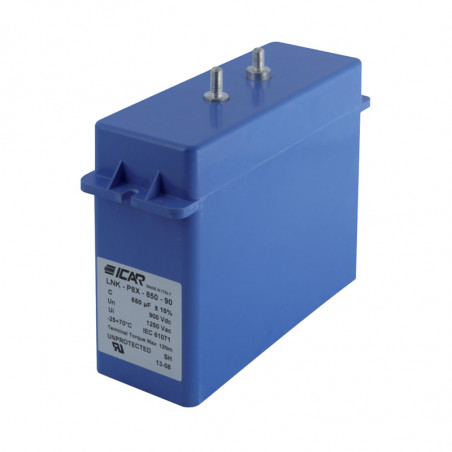

DC power capacators LNK-P8X series
  • DC power capacators LNK-P8X series

Photos are for informational purposes only. View product specification

please use latin characters

Manufacturer: Icar

DC power capacators LNK-P8X series

Technical data
Operating temperature range: -25oC ÷70oC
Tolerance: ±10%

Routine dielectric test: DC voltage test between terminals = 1.5*UNDC,10s [DC]
voltage test between terminals and cas = 10000VAC, 60s [AC]
Type UN
[VDC]
Capacitance
[µF]
Us
[V]
Imax
A
dv/dt
V/us
L
[nH]
Rs
[mΩ]

LNK-P8X-1500-70

700 1500 1400 180 10 30 0.22

LNK-P8X-850-90

900 850 1800 155 12 30 0.27

LNK-P8X-700-100

1000 700 2000 150 13 30 0.30

LNK-P8X-600-110

1100 600 2200 145 14 30 0.31

LNK-P8X-430-125

1250 430 2500 140 17 30 0.36

LNK-P8X-330-145

1450 330 2900 130 19 30 0.40

LNK-P8X-200-180

1800 200 3600 120 24 30 0.51

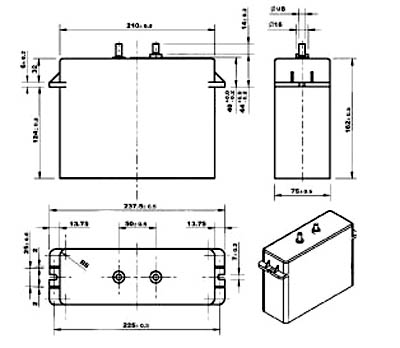

Dimensions [mm]

Kondesatory mocy DC seria LNK-P8X
