Manufacturer: HotCold S.C.

CO2 concentration transmitters

CO2 concentration transmitters

CO2 transmitter based on MHZ14 sensor, with RS-485 interface with built-in MODBUS RTU protocol, with analog output in 0...10V standard.

The transmitter is designed to measure CO2 concentration. Available casing versions for wall and duct mounting.

Technical data:
  • Analog output: 0...10V.
  • Range of CO2: 0...2000 ppm.
  • LED operation indication.
  • Serial interface RS-485 (reading of measurement values, configuration of working parameters), protocol MODBUS RTU.
  • Communication in HALF DUPLEX mode.
  • Hardware configurable address (1-127).
  • Hardware configurable speed (9600, 19200, 38400, 57600, 115200)

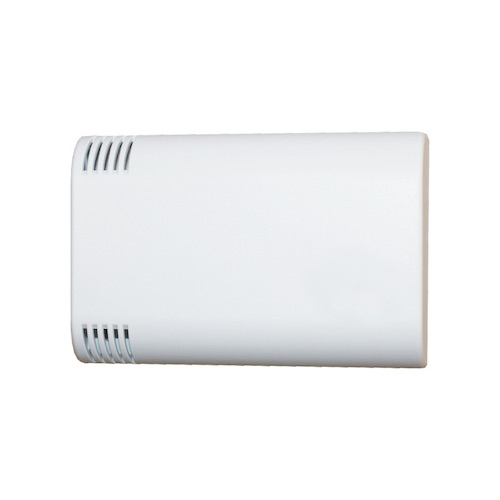

HTC-MODBUS-V-L
(wall mounting)

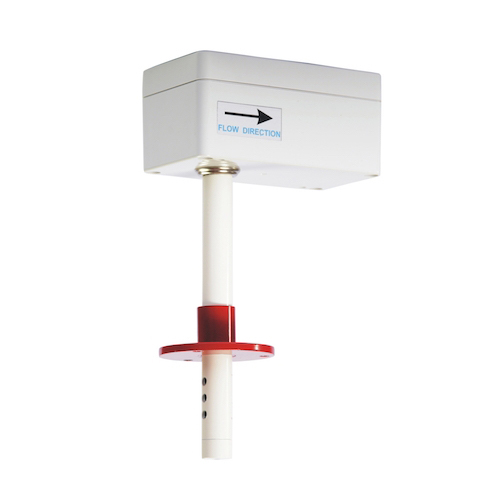

HTC-K-MODBUS-V-L
(duct mounting)

Send an inquiry

Are you interested in this product? Do you need additional information or individual pricing?

Contact us
ASK FOR THE PRODUCT close
Thank you for sending your message. We will respond as soon as possible.
ASK FOR THE PRODUCT close
Browse

Add to Wishlist

You must be logged in

CO2 concentration transmitters

CO2 transmitter based on MHZ14 sensor, with RS-485 interface with built-in MODBUS RTU protocol, with analog output in 0...10V standard.

The transmitter is designed to measure CO2 concentration. Available casing versions for wall and duct mounting.

Technical data:
  • Analog output: 0...10V.
  • Range of CO2: 0...2000 ppm.
  • LED operation indication.
  • Serial interface RS-485 (reading of measurement values, configuration of working parameters), protocol MODBUS RTU.
  • Communication in HALF DUPLEX mode.
  • Hardware configurable address (1-127).
  • Hardware configurable speed (9600, 19200, 38400, 57600, 115200)


HTC-MODBUS-V-L
(wall mounting)




HTC-K-MODBUS-V-L
(duct mounting)
