Manufacturer: HMi Elements

Workstations for zone 1 - 800-Z1, 900-Z1

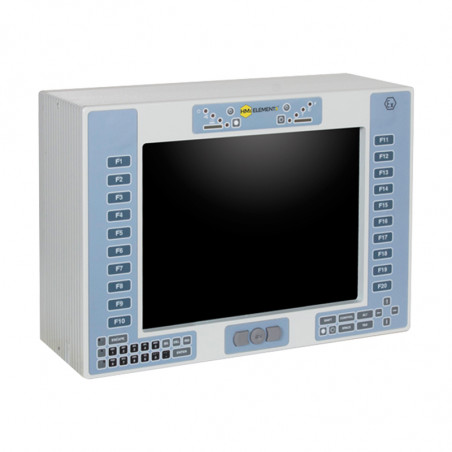

The HMI Elements range of industrial PCs for use in the hazardous area consists of the 800-Z1 and 900-Z1. With no requirement for purging, all HMI Elements computer models are ATEX certified for use as HMIs in Zones 1 and 2.

Characteristics

  • Integrated keyboard/mouse and/or external keyboard
  • Configurable with fibre optic, CAT5, and/or WiFi
  • Support for optional bulkhead mounted Ex e junction boxes
  • Windows 10 Enterprise LTSB or Windows 7 Professional



PC workstations 800-Z1 900-Z1
Typical EX code II 2 G Ex d ib [ib] IIB Gb T4
Display size 15" 19"
Display type LCD
Resolution XGA 1024x768 SXGA 1280x1024
Processor Intel 5th Generation (Broadwell) Core™ i7 5650U 2.2GHz COM Express form factor SBC
HDD / SSD / Flash Rugged 80GB, Rugged 100GB, 64GB SSD, 128GB SSD, 64 GB Flash
RAM 8GB DDR3l
Onboard TPM Fully compliant to the Trusted Computer Group (TCG) Trusted Platform Module (TPM) Version 1.2 specification
Operating system Windows 10 Enterprise LTSB or Windows 7 Professional
COMMS options WiFi / Ethernet (10/100 Mbits/s) / Fibre Optic
Keyboard / mouse / other Integrated membrane mouse
Integrated keypads
External Exi PS/2 interface
Operating temperature -20°C ÷ +50°C (-4°F ÷ +122°F)
Storage temperature -25°C ÷ +55°C (-13°F ÷ +131°F)
Weight 32kg / 68lbs 44kg / 88lbs
Dimensions 465 x 337 x 160 mm 521 x 390 x 165 mm
Optional extras Optional Rota DE2 USB connection system and/or HMi Elements ATEX keyboard


Design and specifi cations subject to change without notice.

Errors and omission excepted.
