Manufacturer: Lumberg

Connectors for sensors



Producer number Description
RSCW 3/7
RSCW 4/7
RSCW 5/7
RSCW 8/7
Male plugØ20mm,length42/37mm, Øcable 3... 6,5mm
terminal for screw clamp,grab body PA,
black, knurl nut CuZn, nickled
4 different positions of cable output.
Male plug3 contacts
Male plug4 contacts
Male plug5 contacts
  RSCW 3/9
RSCW 4/9
RSCW 5/9
RSCW 8/9
Male plug Ø 20mm,length42/37mm, Øcable 4... 8mm
terminal for screw clamp,grab body PA,
black, knurl nut CuZn, nickled
4 different positions of cable output.
Male plug3 contacts
Male plug4 contacts
Male plug5 contacts
    RKC 4/3/7
RKC 4/7
RKC 5/7
RKC 8/7
Female insert
Ø20mm,length53mm, Øcable 3...6,5mm
terminal for screw clamp,grab body PA,
black, knurl nut CuZn, nickled
Insert 3 contacts
Insert 4 contacts
Insert 5 contacts
  RKC 4/3/9
RKC 4/9
RKC 5/9
RKC 8/9

Female insert
Ø20mm,length 53mm, Øcable4...mm
terminal for screw clamp,grab body PA,
black, knurl nut CuZn, nickled
Insert 3 contacts
Insert 4 contacts
Insert 5 contacts

Producer number Description
         RKCW 4/3/7
RKCW 4/7
RKCW 5/7
RKCW 8/7

Female insert, angular
Ø 20 mm, length 35/37 mm, Ø cable3... 6,5 mm
terminal for screw clamp,grab body PA,
black, knurl nut CuZn, nickled
4 different positions of cable output.
Female insert, angular 3 contacts
Female insert, angular 4 contacts
Female insert, angular 5 contacts
  RKCW 4/3/9
RKCW 4/9
RKCW 5/9
RKCW 8/9
Female insert, angular
Ø 20mm,length35/37mm,Ø cable 4... 8mm
terminal for screw clamp,grab body PA,
black, knurl nut CuZn, nickled
4 different positions of cable output.
Female insert, angular 3 contacts
Female insert, angular 4 contacts
Female insert, angular 5 contacts
Producer number Description
RSCS 4/7
RSCS 5/7		 Male plug with thread closure M 12x1
Ø 19,6mm,length 61 mm,Ø cable 4...6mm
terminal for screw clamp, knurl nut CuZn, nickled, shield possible
plug 4 contacts
plug 5 contacts
RKCS 4/7
RKCS S7		 Female plug with thread closureM12x1
Ø 19,6mm, length 56 mm, Ø cable4... 6 mm
terminal for screw clamp, knurl nut CuZn, nickled, shield possible
plug 4 contacts
plug 5 contacts


RSC30-RSC50

Male plug Ø 7,8“ IP67


Technical data

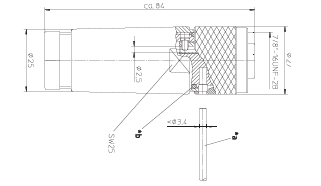

Dimensions [mm]
Current
3 contacts: 12 A

4 contacts: 9 A
Napięcie pracy:
240V AC/250 VDC

Male plug 3 contacts:
RSC 30/9;

RSC 30/11

Male plug 4 contacts:


RSC40/9;

RSC 40/11

male plug 5 contacts:
RSC50/9;

RSC 50/11





RKC 30-RKC 50

Female plug Ø 7,8” IP67

    Wymiary [mm]
Technical data

Current:
3 contacts: 12 A

4 contacts: 9 A
Operating voltage:
240V AC/250V DC

Female plug 3 contacts:
RSC 30/9;

RSC 30/11

Female plug 4 contacts:
RSC 40/9;

RSC 40/11

Female plug 5 contacts:
RSC 50/9;

RSC 50/11




RSC-F-12/13,5


Male plug Ø M 23 “ IP67



Technical data
Current: 7,5 A

Operation voltage 240V AC/250V DC


RKC 120/13,5

Male plug Ø M 23 “ IP67



Dimensions [mm]
Technical data
Current: 7,5 A

Operating voltage: 240V AC/250V DC


RK WC 120/13,5



Dimensions [mm]
Technical data
Current: 7,5 A

Operation voltage: 240V AC/250V DC
