Manufacturer: Comitronic

Epinus2k72 Not an autonomous non-contact switch

  • EPINUS2K72
  • Wire length 3 m
    3 m
  • Working temp. range -25°C ... +80°C
  • Operating range 3 mm
  • Contacts 2NO + 1NC
    2NO+1NC
  • Housing material stal nierdzewna 316
  • Protection rating IP 68
  • Security category 3 lub 4

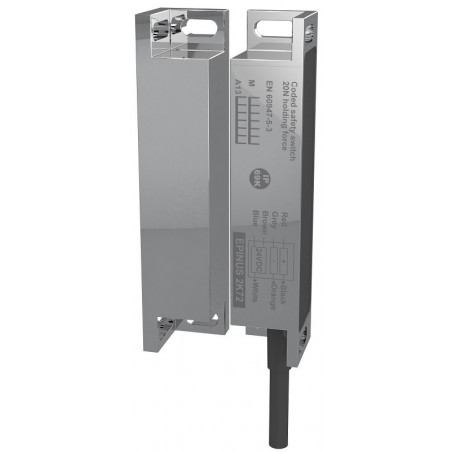

Epinus 2K 72 - Safety switch

Stainless steel with a magnetic latch using the ACOTOM2® process, which detects the opening of moving shields that allow access to dangerous areas and maintains them in a magnetic closure.
Optionally, a handle for opening / closing mounted on the transmitter is available.
Housings are made of 316L stainless steel for uncompromising use in the food industry.
When the transmitter is in front of the receiver, both semiconductor contacts are closed and the auxiliary contact opens.
When the transmitter changes position, safety contacts
They open and the auxiliary contact sends the supply voltage.
In order to ensure safety
Machines This product must be connected to the safety relay
