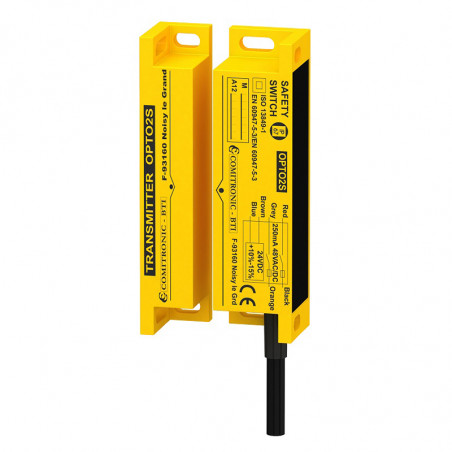

Contactless safety switch - OPTOPUS
  • Contactless safety switch - OPTOPUS

Photos are for informational purposes only. View product specification

please use latin characters

Manufacturer: Comitronic

Contactless safety switch - OPTOPUS

Non-contact and coded electronic switch

Properties:
Suited for small access area
Decoding by Acotom®2 process
Misalignment : ±3 mm up/down and left/right
Detection distance/hysteresis : 5 /+2 (mm)
LED display of switch condition
Mounting brackets and moulded cable
Polycarbonate housing
Protection class IP67
Temperature -20°C to +60°C
Unlimited life expectancy (unlimited number of operations)

Safety category

OPTOPUS : EN60947-5-3
1 OPTOPUS with Awax : category 4
OPTOPUS in series with Awax : category 3

Dimensions [mm]

Send an inquiry

Are you interested in this product? Do you need additional information or individual pricing?

Contact us
ASK FOR THE PRODUCT close
Thank you for sending your message. We will respond as soon as possible.
ASK FOR THE PRODUCT close
Browse

Add to Wishlist

You must be logged in

Non-contact and coded electronic switch

Properties:
Suited for small access area
Decoding by Acotom®2 process
Misalignment : ±3 mm up/down and left/right
Detection distance/hysteresis : 5 /+2 (mm)
LED display of switch condition
Mounting brackets and moulded cable
Polycarbonate housing
Protection class IP67
Temperature -20°C to +60°C
Unlimited life expectancy (unlimited number of operations)

Safety category

OPTOPUS : EN60947-5-3
1 OPTOPUS with Awax : category 4
OPTOPUS in series with Awax : category 3

Dimensions [mm]
