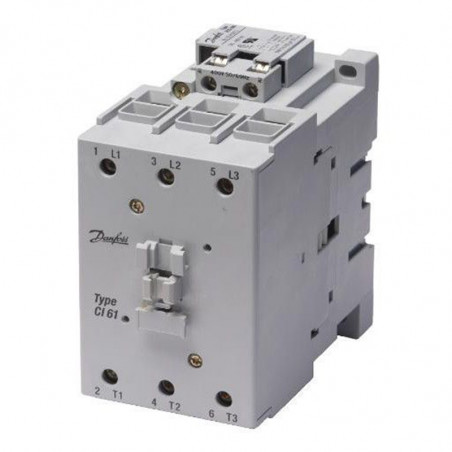

Contactors - CI 61-86
  • Contactors - CI 61-86

Photos are for informational purposes only. View product specification

please use latin characters

Manufacturer: Danfoss

Contactors - CI 61-86

Type Ue
220-240V
[kW]		 AC-3
Ue
380-500V
[kW]		 Ie
[A]		 I'th
(AC-1)
open
[A]		 Ithe
(AC-1)
closed
[A]		 Main contact quantity
[A]		 Additional contact quantity Catalogue number
CI 61 18,5 30 60 100 100 3 1-8 037H3061
CI 73 22 37 72 100 100 3 1-8 037H3062
CI 86 25 45 85 100 100 3 1-8 037H3063



Coil voltage Number
24 V, 50/60 Hz 13
110V, 50/60 Hz 23
220-230 V, 50/60 Hz 32
380-400 V, 50/60 Hz 39
Extra elements

RC Element Cl 61-86 Catalogue number
RCD48 24-48V,50/60Hz 037H3071
RCD 280 110-280V, 50/60Hz 037H3072
RCD 480 380-480V, 50/60Hz 037H3073
Plate - 100 pce 037H33142
Blockade
Blockade Cl 61-73-86 037H3074

Additional contact

Ue 690V
Type		 le
(AC-15)		 I th (AC-1)
open

Ithe (AC-1)
closed

 Catalogue number
For CI 61-86
CBD-11 5,5 10 6 037H3064
CBD-22 5,5 10 6 037H3065
CBDS-NC 3,0 10 6 037H3066
CBDS-NO 3,0 10 6 037H3067
CBD S-02 3,0 10 6 037H3068
CBDS-11 3,0 10 6 037H3069
CBD S-20 3,0 10 6 037H3070

Dimensions [mm]

//

Less
Read more
