Manufacturer: M-SYSTEM

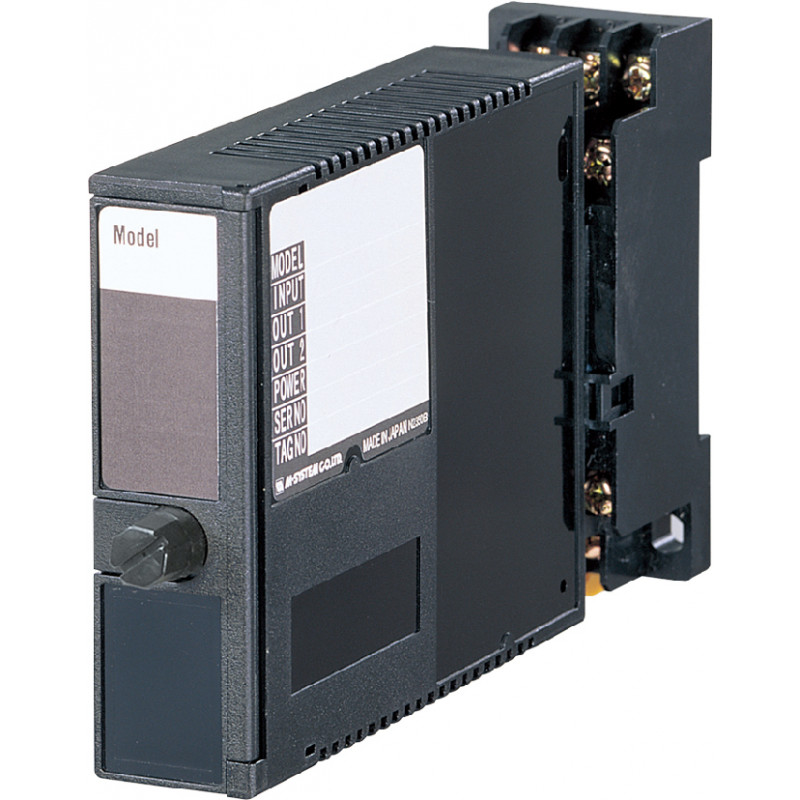

M2TG - tachometric transducer

  • M2TG

M2TG is a tachometric transducer with an output standard analog signal (range to be specified when ordering). It is used to measure multiple speeds, e.g. of motors or conveyors.


Features

  • Mounting socket for each model - allows easy assembly / disassembly and quick conversion of converters without interfering with the wiring
  • AC / DC power
  • Input frequency 50/60 / 400Hz
  • Convert the output current from a transformer to a standard analog signal
  • DIN rail mounting
  • 2000V AC insulation

Types of inputs: voltage with different ranges
Types of outputs: current or voltage with different ranges
Possibility to make the range of inputs / outputs on special order.


Wire connection M3 screw terminals
Separation Input / Output / Power
Dielectric Strength With DC power: 2000V AC
With AC power: 1500V AC
Range selection To be set when ordering
Double Output None
Power AC / DC
Working Temperature - 5 to + 55 ° C
Montage On a DIN rail
Dimensions 23x76x124mm
