Manufacturer: M-SYSTEM

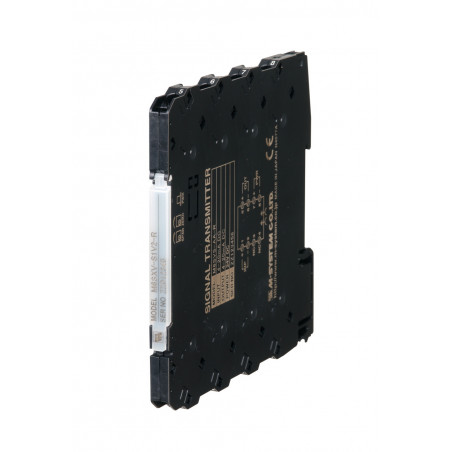

M6SCTC, M6NCTC, M6DCTC - Current transducer - small size

  • M6SCTC, M6NCTC, M6DCTC

M6SCTC, M6NCTC, M6DCTC is a current converter that converts the input current into a standard analog signal (the range is determined when ordering) - very thin design.


M6SXU - Spring connector
M6NXU - M3 screw connection
M6DXU - Euro screw connection


Features

  • DC power supply
  • Narrow design - up to 5.9mm wide
  • Selection of current ranges from 10A to 600A
  • Convert the output current from a transformer to a standard analog signal
  • DIN rail mounting

Types of inputs: current (range 10-600A)
Types of outputs: current or voltage with different ranges
Possibility to make the range of inputs / outputs on special order.


Wire connection M3 screw terminals
Separation Input / Output / Power
Dielectric Strength With DC power: 2000V AC
With AC power: 1500V AC
Range selection To be set when ordering
Double Output None
Power DC
Working Temperature - 20 to + 55 ° C
Montage On a DIN rail
Dimensions 5.9 / 7.5x94x106mm
