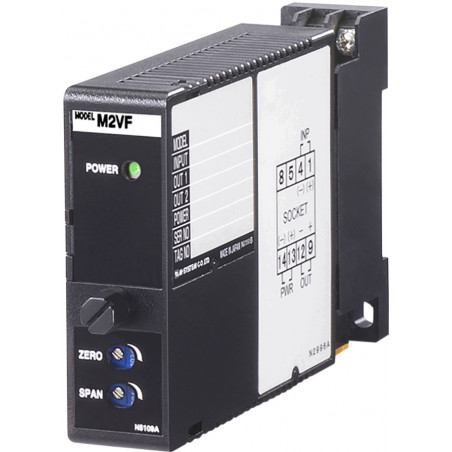

M2VF - Signal converter with DC input MV, voltage and current - quick response
  • M2VF - Signal converter with DC input MV, voltage and current - quick response

Photos are for informational purposes only. View product specification

please use latin characters

Manufacturer: M-SYSTEM

M2VF - Signal converter with DC input MV, voltage and current - quick response

  • M2VF

M2VF is a converter with DC mV input and output, current and voltage (short signal response time 150 μsec).


Features

  • Fast response 150 μsec
  • Provides Isolated DC Output
  • 24V DC, 85-264V AC Power
  • DIN Rail Mount
  • 2000V AC Insulation
  • LED informing about power supply

Types of inputs: current or voltage with different ranges
Types of outputs: current or voltage with different ranges
Possibility of making I / O range on special request.


< td style = "padding-left: 20px"> To be determined when ordering < tr>
Wire connection M3 screw terminals
Separation Input / Output / Power
Dielectric strength DC: 2000V AC
AC: 1500V AC
Ranges selection
Double exit None
Power AC / DC
Working temperature - 5 to + 55 ° C
Mounting DIN rail
Dimensions 25x41x97mm
Less
Read more

Send an inquiry

Are you interested in this product? Do you need additional information or individual pricing?

Contact us
ASK FOR THE PRODUCT close
Thank you for sending your message. We will respond as soon as possible.
ASK FOR THE PRODUCT close
Browse
send an inquiry

Add to Wishlist

You must be logged in

M2VF is a converter with DC mV input and output, current and voltage (short signal response time 150 μsec).


Features

  • Fast response 150 μsec
  • Provides Isolated DC Output
  • 24V DC, 85-264V AC Power
  • DIN Rail Mount
  • 2000V AC Insulation
  • LED informing about power supply

Types of inputs: current or voltage with different ranges
Types of outputs: current or voltage with different ranges
Possibility of making I / O range on special request.


< td style = "padding-left: 20px"> To be determined when ordering < tr>
Wire connection M3 screw terminals
Separation Input / Output / Power
Dielectric strength DC: 2000V AC
AC: 1500V AC
Ranges selection
Double exit None
Power AC / DC
Working temperature - 5 to + 55 ° C
Mounting DIN rail
Dimensions 25x41x97mm
