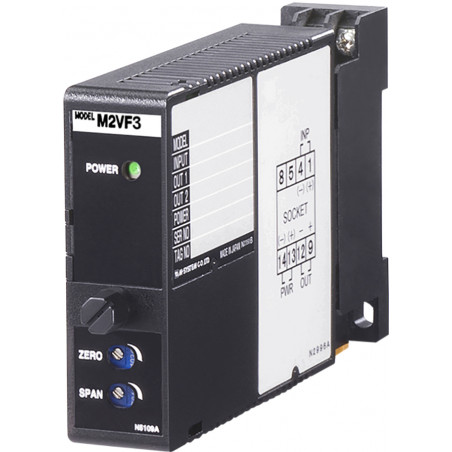

M2VF3 - signal converter with DC MV, voltage and current input
  • M2VF3 - signal converter with DC MV, voltage and current input

Photos are for informational purposes only. View product specification

please use latin characters

Manufacturer: M-SYSTEM

M2VF3 - signal converter with DC MV, voltage and current input

  • M2VF3

M2VF3 is a converter with DC mV input and output, current and voltage (range to be specified when ordering). Ultra fast response time & lt; 30μs and high accuracy of ± 0.01%


Features

  • Mounting socket for each model - allows easy assembly / disassembly and quick conversion of converters without interfering with the wiring
  • Ultra fast response time & lt; 30μs
  • High accuracy - ± 0.01%
  • Power 24V DC, 100-240V AC
  • DIN rail mounting
  • 2000V AC insulation

Types of inputs: current or voltage with different ranges
Types of outputs: current or voltage with different ranges
Possibility to make the range of inputs / outputs on special order.


Wire connection M3 screw terminals
Separation Input / Output / Power
Dielectric Strength With DC power: 2000V AC
With AC power: 1500V AC
Range selection Determined during the order or programmable One Step Cal / PC
Double Output None
Power AC / DC
Working Temperature - 5 to + 55 ° C
Montage On a DIN rail
Dimensions 23x76x124mm
