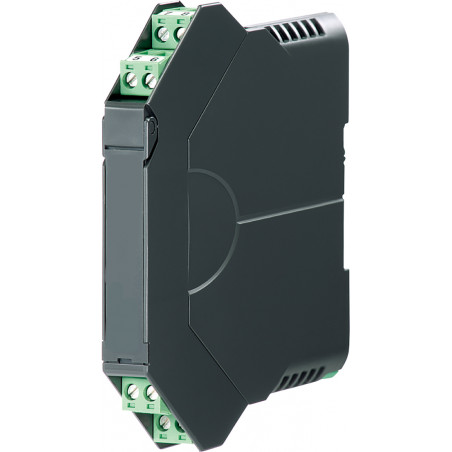

M3SYV - Signal converter with DC input MV, voltage and current - 12mm width
  • M3SYV - Signal converter with DC input MV, voltage and current - 12mm width

Photos are for informational purposes only. View product specification

please use latin characters

Manufacturer: M-SYSTEM

M3SYV - Signal converter with DC input MV, voltage and current - 12mm width

  • M3SYV

M3SYV is a converter with DC mV input and output, current and voltage.


Features

  • Perfect to use as a quick solution, multi-functional spare part
  • Galvanic Isolation
  • 24V DC Power , 100-240V AC
  • DIN rail mounting
  • 2000V AC insulation

Input types: current or voltage with different ranges < br> Types of outputs: current or voltage with different ranges
Possibility to make a range of inputs / outputs on a special order.


< tr> < td style = "padding-left: 20px"> None < / table>
Less
Read more

Send an inquiry

Are you interested in this product? Do you need additional information or individual pricing?

Contact us
ASK FOR THE PRODUCT close
Thank you for sending your message. We will respond as soon as possible.
ASK FOR THE PRODUCT close
Browse
send an inquiry

Add to Wishlist

You must be logged in

M3SYV is a converter with DC mV input and output, current and voltage.


Features

  • Perfect to use as a quick solution, multi-functional spare part
  • Galvanic Isolation
  • 24V DC Power , 100-240V AC
  • DIN rail mounting
  • 2000V AC insulation

Input types: current or voltage with different ranges < br> Types of outputs: current or voltage with different ranges
Possibility to make a range of inputs / outputs on a special order.


Wire connection M3 screw terminals
Separation Input / Output / Power
Dielectric strength DC: 2000V AC
AC: 1500V AC
Sel Ranges When ordering
Double exit
Power AC
Operating Temperature -10 to + 55 ° C
Mounting DIN rail
Dimensions 12x106x110.5mm
< tr> < td style = "padding-left: 20px"> None < / table>
