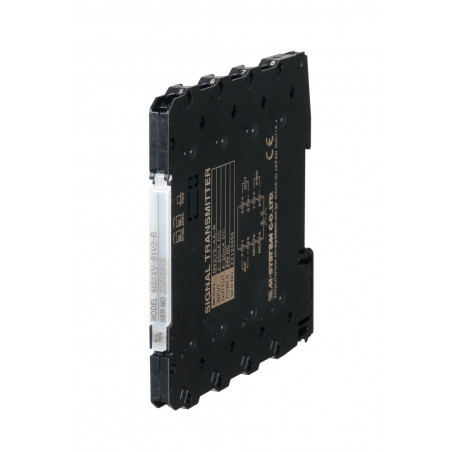

M6SYV, M6NYV, M6DYV - Galvanic isolator signal with DC input MV, voltage and current ULTRA SLIM
  • M6SYV, M6NYV, M6DYV - Galvanic isolator signal with DC input MV, voltage and current ULTRA SLIM

Photos are for informational purposes only. View product specification

please use latin characters

Manufacturer: M-SYSTEM

M6SYV, M6NYV, M6DYV - Galvanic isolator signal with DC input MV, voltage and current ULTRA SLIM -M-SYSTEM

  • M6SYV, M6NYV, M6DYV

M6SYV, M6NYV, M6DYV is a signal galvanic isolator with DC mV, Voltage and Current input - ultra slim version - signal galvanic isolation.


M6SXU - Spring connector
M6NXU - Screw connector M3
M6DXU - Euro screw connector


Features

  • 1-channel, 4-wire
  • Provides galvanic isolation of signals
  • Power 24V DC, 100-240V AC
  • Slim case with 5.9-7.5mm width
  • LED power indicator
  • Rail mounting DIN
  • Insulation 1500 / 2000V AC

Types of inputs: current or voltage with different ranges
Types of outputs: current or voltage with different ranges
Possibility to make a range of inputs / outputs on a special order.


Wire connection M3 screw terminals
Separation Input / Output / Power
Dielectric strength DC: 2000V AC
AC: 1500V AC
Ranges selection To be determined when ordering
Double exit None
Power AC / DC
Operating Temperature - 20 to + 55 ° C
Mounting DIN rail
Dimensions 5.9 (7.5) x 94 x 102mm
