W2MS - Signal converter with a resistive input with a double output

  • W2MS

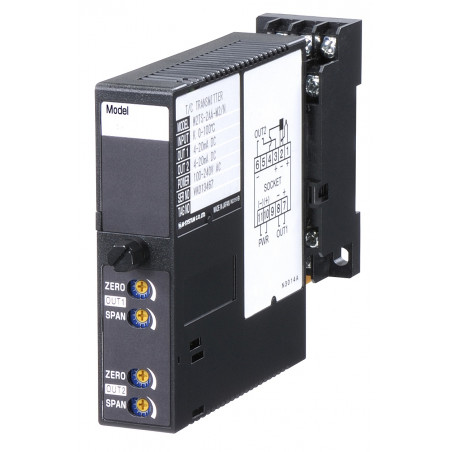

W2MS is a converter with a resistance input with two outputs.


Features

  • Mounting socket for each model - allows easy assembly / disassembly and quick conversion of converters without the need to interfere with Wiring
  • DC / AC Power
  • Dual Output
  • DIN Rail Mounting
  • 2000V AC Insulation
  • Possibility options with faster response time

    • Types of inputs: resistive 100Ω - 10kΩ
    Types of outputs: current or voltage
    Possibility of making the range of inputs / outputs on special order.


    < td style = "padding-left: 20px"> M3 screw terminals < / table>
    Less
    Read more

    Send an inquiry

    Are you interested in this product? Do you need additional information or individual pricing?

    Contact us
    ASK FOR THE PRODUCT close
    Thank you for sending your message. We will respond as soon as possible.
    ASK FOR THE PRODUCT close
    Browse
    send an inquiry

    Add to Wishlist

    You must be logged in

    W2MS is a converter with a resistance input with two outputs.


    Features

  • Mounting socket for each model - allows easy assembly / disassembly and quick conversion of converters without the need to interfere with Wiring
  • DC / AC Power
  • Dual Output
  • DIN Rail Mounting
  • 2000V AC Insulation
  • Possibility options with faster response time

    • Types of inputs: resistive 100Ω - 10kΩ
    Types of outputs: current or voltage
    Possibility of making the range of inputs / outputs on special order.


    Wire connection
    Separation Input / Output / Power
    Dielectric strength DC: 2000V AC
    AC: 1500V AC
    Ranges selection To be determined when ordering
    Double exit Yes
    Power AC / DC
    Operating Temperature - 5 to + 55 ° C < / td>
    Mounting DIN rail
    Dimensions 29.5x88.5x124mm
    < td style = "padding-left: 20px"> M3 screw terminals < / table>
