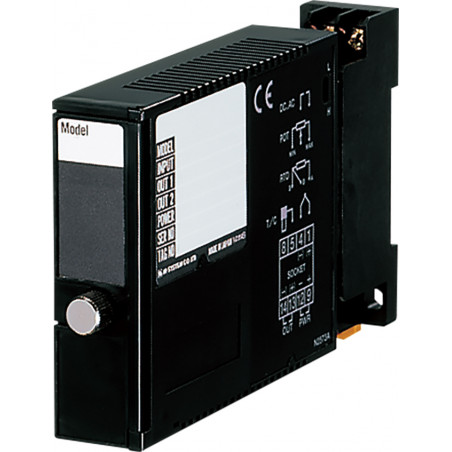

M2XU - signal converter with universal entrance

  • M2XU

M2XU is a converter with universal input and output (programmable by the user).


Features

  • 2 independent DC isolated outputs
    • < li> Mounting socket for each model - allows easy assembly / disassembly and quick conversion of converters without interfering with the wiring.
  • Calibration possible using a PC or buttons on the front of the housing
  • 24V DC power supply, 100-240V AC
  • DIN rail mounting
  • 2000V AC insulation

Input types: universal, mA DC, mV DC, µA, V DC, mA AC, A AC, mV AC, V AC, thermocouple, sensor (Pt 50, Pt 100, Pt1000 ..., Ni, Cu), frequency (pulse), resistance (potentiometric), pneumatic.
Types of outputs: mA DC, mV DC, VDC, frequency (pulse)
Possibility to make a range of inputs / outputs on a special request.


< td style = "padding-left: 20px"> M3 screw terminals
Wire connection
Separation Input / Output / Power
Dielectric strength DC: 2000V AC
AC: 1500V AC
Ranges selection To be ordered or programmed One Step Cal / PC
Double output None
Power AC / DC
Operating Temperature - 30 to + 60 ° C
Editing On a DIN rail
Dimensions 23x76x124mm
