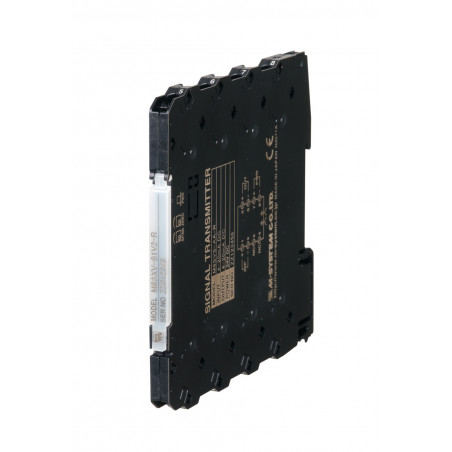

M6SXU, M6NXU, M6DXU - Signal converter with Ultra Slim Universal Entry
  • M6SXU, M6NXU, M6DXU - Signal converter with Ultra Slim Universal Entry

Photos are for informational purposes only. View product specification

please use latin characters

Manufacturer: M-SYSTEM

M6SXU, M6NXU, M6DXU - Signal converter with Ultra Slim Universal Entry

  • M6SXU, M6NXU, M6DXU

M6SXU, M6NXU, M6DXU is a converter with universal input and output (programmable by the user) - ultra slim version.


M6SXU - Spring connector
M6NXU - M3 screw connector
M6DXU - Euro screw connector


Features

  • 1-channel, 4-wire
  • Programmable ranges of input and output signals
    • < li> Power 24V DC, 9-26V DC, 85-264V AC
  • Slim case with 5.9-7.5mm width
  • LED power indicator
  • DIN rail mounting
  • 1500 / 2000V AC insulation

Input types: universal, mA DC, mV DC, V DC, thermocouple, sensor (Pt 50 , Pt 100 ..., Ni, Cu), frequency (pulse), resistance (potentiometer), strain gauge (strain gauge)
Types of outputs: mA DC (0 ... 20mA), VDC (-2.5 + 2.5V, -10+ 10V), relay, frequency
Possibility to make a range of inputs / outputs on a special order.


< tr>
Wire connection M3 screw terminals
Separation Input / Output / Power
Dielectric strength DC: 2000V AC
AC: 1500V AC
Range Selection Programmable PC
Double Output None
Power AC / DC
Operating Temperature - 20 down to + 55 ° C
Mount On a DIN rail
Dimensions 5.9 (7, 5) x 94 x 102mm
