Heat sink casing
  • Heat sink casing

Photos are for informational purposes only. View product specification

please use latin characters

Manufacturer: ALUTRONIC

Heat sink casing

Application

For PCB instalation.

KG 4001
KG 4005
KG 4007
KG 4008
KG 4009
KG 4003

WG 4291/2/3

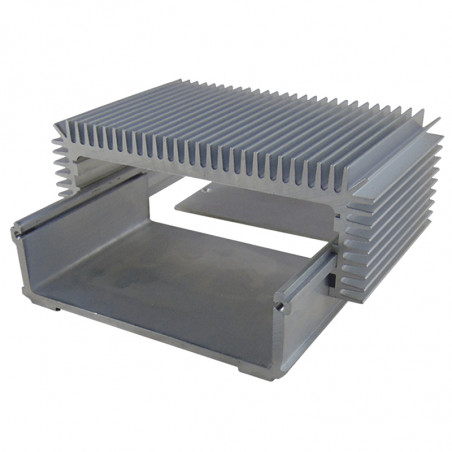

Casings with heat sink–available in 3 versions: V1, V2, V3

WG 4291, WG 4292, WG 4293

Stable profile case with integrated cooling fins and screwed-in exterior front panels. The case is designed with 3 different adjusable heights. Profile also available in meter-lengths. Case-lenghts: Length, processing and surface in accordance with your specification. Combinations of all surfaces available. Standard-lengths: inside: 120 mm, 160 mm, 200 mm; outside: 124 mm, 164 mm, 204 mm. Surface finishes: anodising to customer’s specification (natural, black, other colours) chromating on request (natural, yellow) lacquering in all RAL colours

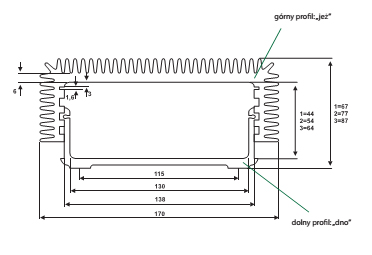

 OutsideInside
WG 4191 44 mm 67 mm
WG 4192 54 mm 77 mm
WG 4193 64 mm 87 mm
